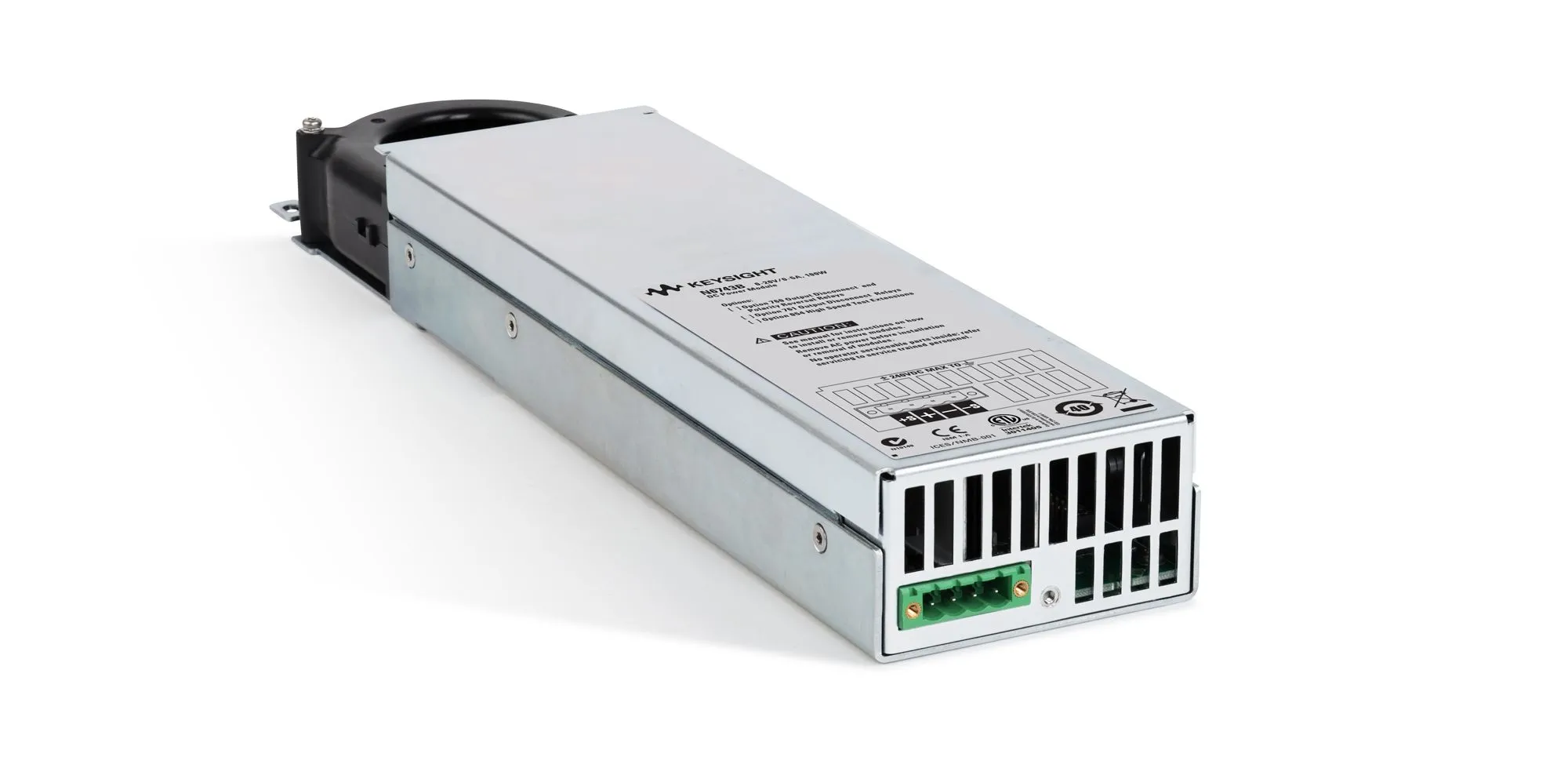

Keysight N6743B DC Power Module
Request a quote
Keysight N6743B is a 100W DC power module providing 0 to 20V, 0 to 5A output with 0.1% voltage accuracy for N6700 modular power systems and N6705 analyzers.
Product details
| Model | N6743B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6743B is a 100W DC power module designed for integration into the N6700 Low-Profile Modular Power System (for ATE applications) or the N6705 DC Power Analyzer (for bench testing). It provides stable programmable output, integrated device protection, and accurate measurements at an economical price point, making it ideal for powering devices under test or providing power for ATE system resources.
Key Features
- Output voltage: 0 to 20V DC
- Output current: 0 to 5A
- Maximum power: 100W
- Voltage programming accuracy: 0.1% + 20 mV
- Current measurement accuracy: 0.15% + 20 mA
- Low ripple and noise: 3 mV rms / 14 mV peak-to-peak (voltage)
- Overvoltage, overcurrent, and overtemperature protection
- Two-wire local or four-wire remote sense
- Quick disconnect connector
- Single-width module (4 modules fit per mainframe)
- GPIB, LAN, USB, and LXI compliance via mainframe
Applications
- Automated test equipment (ATE) systems
- Bench-top power supply and analysis
- Device under test (DUT) power supply
- System fixture control and resources
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 5A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Power Rating | 100 W |
| Output Voltage | 20 V |
| Output Current | 5 A |
| Series | N6700 Series |
