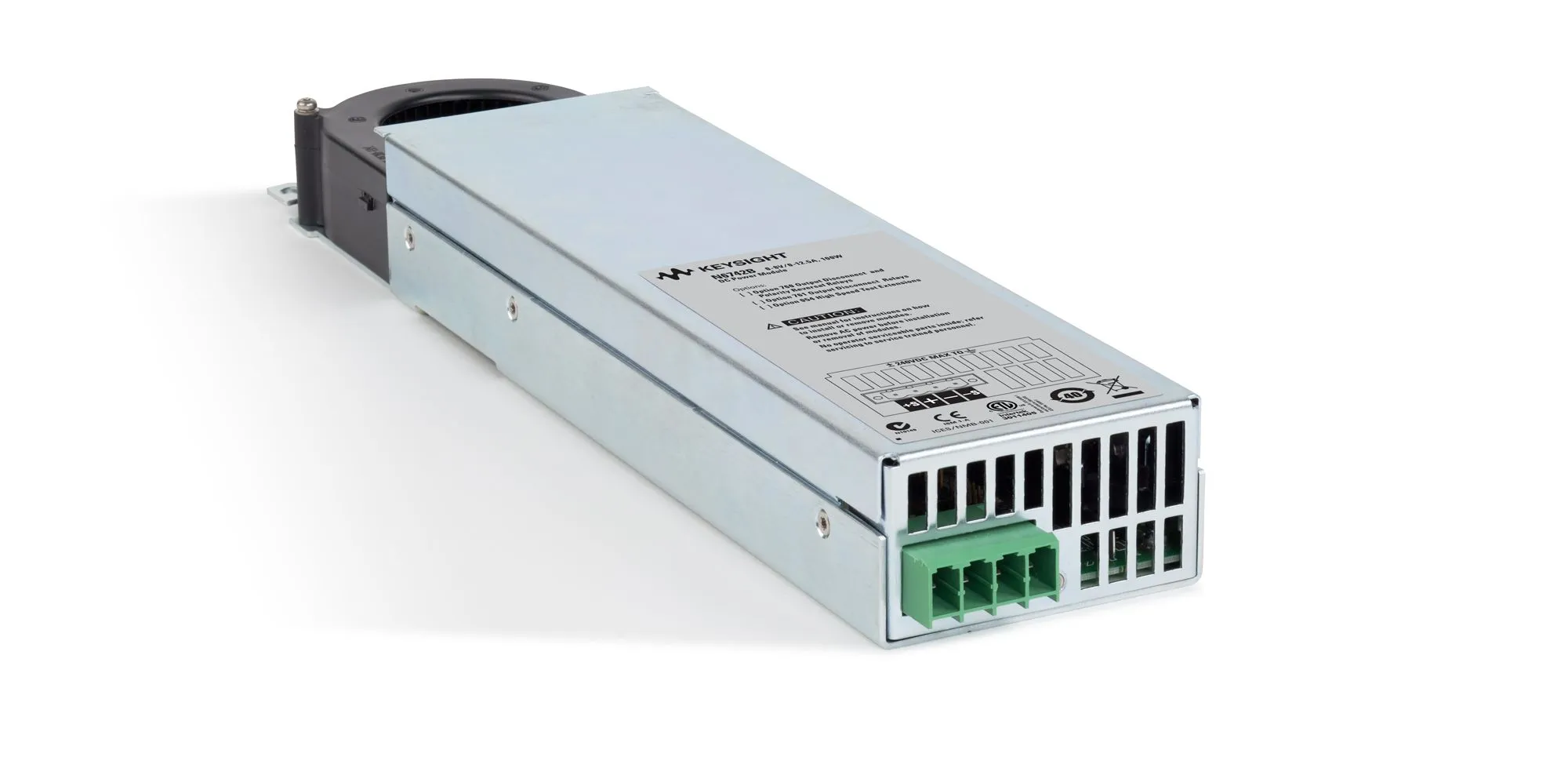

Keysight N6742B Basic DC Power Module
Request a quote
Keysight N6742B is a 100W basic DC power module with programmable voltage and current, measurement and protection features for ATE systems and bench testing.
Product details
| Model | N6742B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6742B is a 100W basic DC power module designed for use in the N6700 Low-Profile Modular Power System (ATE applications) or N6705 DC Power Analyzer (bench testing). It provides programmable voltage and current with measurement and protection features at an economical price point. The module supports GPIB, LAN, USB, and LXI compliance when used with compatible mainframes.
Key Features
- Output ratings: 8V, 12.5A, 100W maximum
- Programmable voltage and current
- Voltage accuracy: 0.1% + 19 mV
- Current accuracy: 0.15% + 20 mA
- Low ripple and noise: 2 mV rms voltage, 4 mA rms current
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
- Single-width module (up to four per mainframe)
- Two-wire local sense or four-wire remote sense
Applications
- Automated test equipment (ATE) systems
- Bench testing and device characterization
- Fixture control and power distribution
- Test system resources
Specifications
| Maximum Voltage | 8V |
| Maximum Current | 12.5A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 100 W |
| Output Voltage | 8 V |
| Output Current | 12.5 A |
| Series | N6700 Series |
