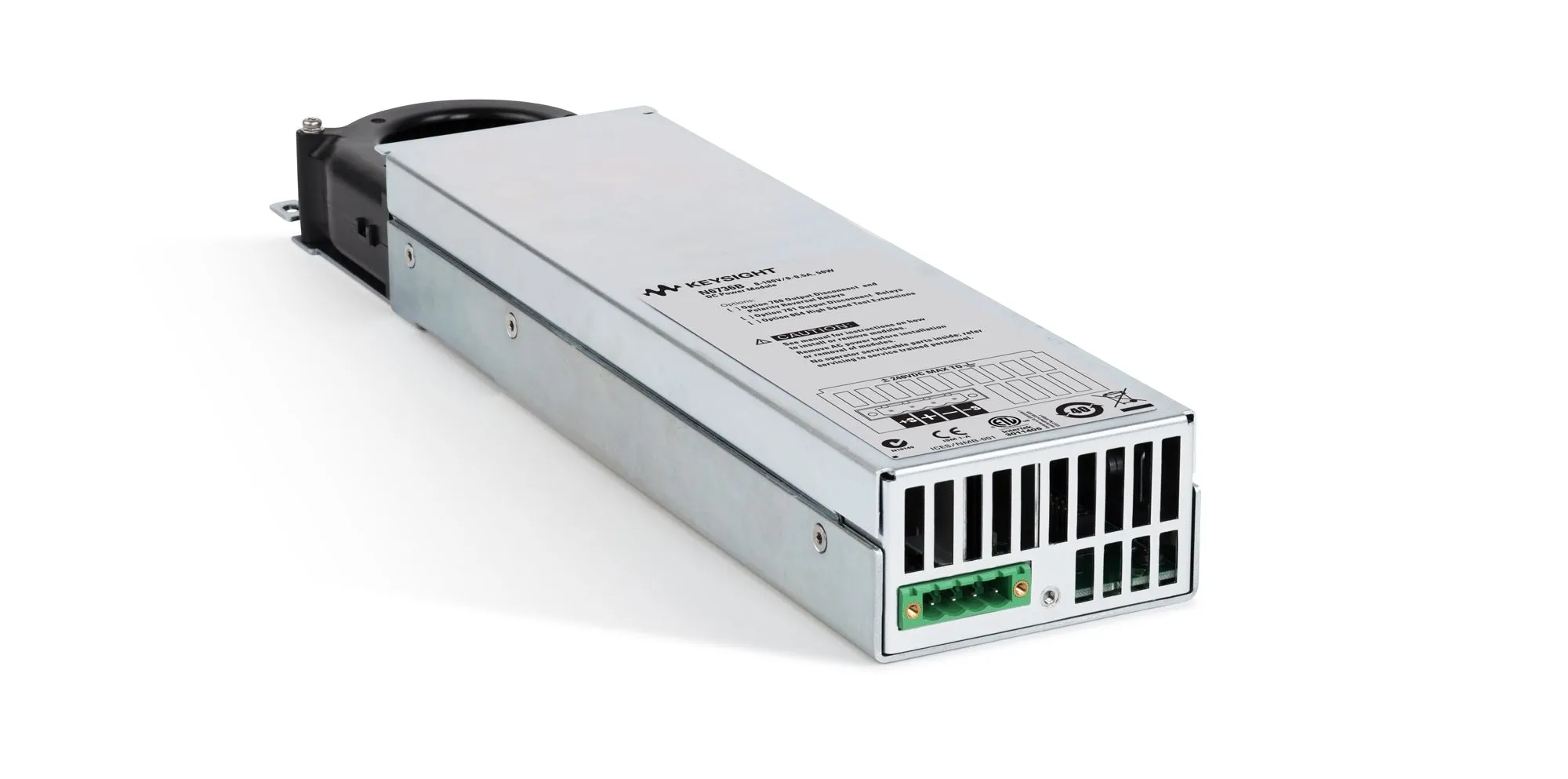

Keysight N6736B DC Power Module
Request a quote
Keysight N6736B is a 50 W DC power module with 0–100 V output, 0.1% voltage accuracy, and protection for ATE systems.
Product details
| Model | N6736B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6736B is a 50 W basic DC power module that provides programmable output voltage and current with integrated measurement and protection features. Designed for use in modular power systems, it supports both lab bench testing and automated test equipment (ATE) applications through compatible N6700 series mainframes.
Key Features
- Programmable output voltage: 0 to 100 V
- Output current: 0 to 0.5 A
- Output power: 50 W maximum
- Voltage accuracy: 0.1% + 19 mV (at 5 V output)
- Ripple and noise: 10 mV (at 5 V output)
- Up and down-programming with resistive load typically 20 ms
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
- GPIB, LAN, USB, and LXI compliance on mainframes
- Single-width module allowing up to four per mainframe
Applications
- Automated test equipment (ATE) systems
- Bench and lab testing with N6705 DC Power Analyzer
- Device under test (DUT) powering
- ATE fixture control and system resource powering
Specifications
| Maximum Voltage | 100V |
| Maximum Current | 5A |
| Maximum Power | 50W |
| Power Rating | 50 W |
| Output Voltage | 100 V |
| Output Current | 0.5 A |
| Series | N6700 Series |
