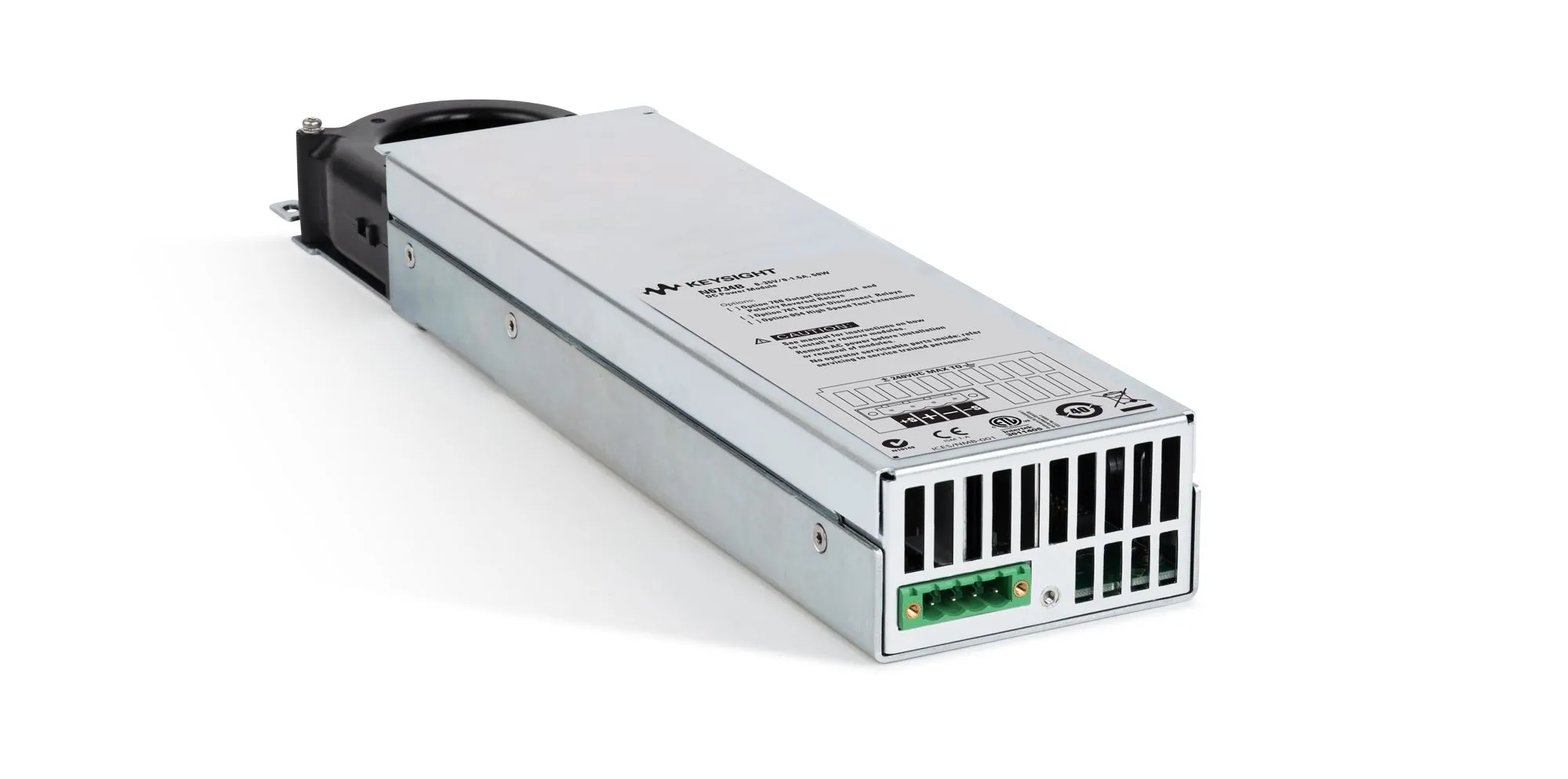

Keysight N6734B DC Power Module
Request a quote
Keysight N6734B is a 52.5 W basic DC power module with programmable voltage (0-35V) and current (0-1.5A), designed for ATE systems and bench testing.
Product details
| Model | N6734B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6734B is a 52.5 W basic DC power module designed for use in the N6700 Low-Profile Modular Power System or N6705 DC Power Analyzer. It provides programmable voltage and current output with measurement and protection features, suitable for powering devices under test or ATE system resources.
Key Features
- Programmable output voltage: 0 to 35 V
- Programmable output current: 0 to 1.5 A
- Output power: 52.5 W maximum
- Voltage accuracy: 0.1% + 35 mV
- Ripple and noise: 5 mV rms, 15 mV peak-to-peak
- Up and down-programming with resistive load: typically 20 ms
- Overvoltage, overcurrent, and overtemperature protection
- 2-wire local sense or 4-wire remote sense capability
- Quick disconnect connector
- Single-wide module allows four per mainframe
Applications
- Automated test equipment (ATE) systems
- Bench power supply and testing
- Device under test (DUT) power
- Fixture control and ATE system resources
Specifications
| Maximum Voltage | 50V |
| Maximum Current | 1.5A |
| Maximum Power | 50W |
| Channel/Port Count | 1 |
| Power Rating | 52.5 W |
| Output Voltage | 35 V |
| Output Current | 1.5 A |
| Series | N6700 Series |
