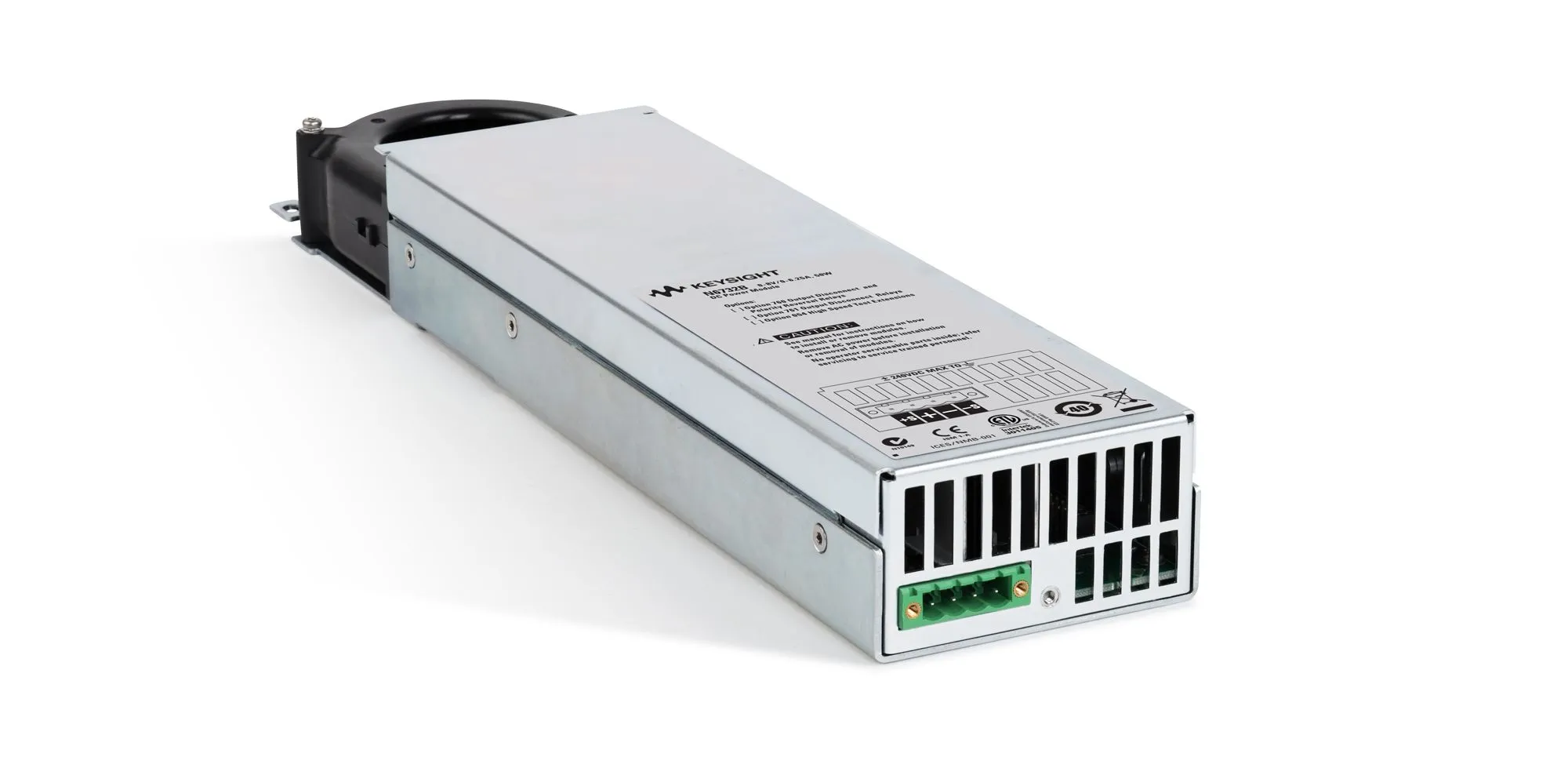

Keysight N6732B DC Power Module
Request a quote
Keysight N6732B is a 50W DC power module with 0–8V, 0–6.25A output and programmable voltage/current for modular power systems.
Product details
| Model | N6732B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6732B is a basic 50W DC power module that provides stable output, device protection, and accurate measurements. Designed for the N6700 Low-Profile Modular Power System and N6705 DC Power Analyzer, it delivers programmable voltage and current control with remote sensing for improved regulation.
Key Features
- DC output: 0–8V, 0–6.25A, 50W maximum
- Voltage programming accuracy: 0.1% + 19 mV
- Current measurement accuracy: 0.15% + 20 mA
- Ripple and noise: 10 mV (8V output)
- Programming speed: typically 20 ms up and down with resistive load
- 2-wire local sense or 4-wire remote sense for improved regulation
- Overvoltage, overcurrent, and overtemperature protection
- Single-width module allows four modules per mainframe
- Quick disconnect connector
Applications
- Device under test power supply
- ATE system fixture control
- Test and measurement applications
Specifications
| Maximum Voltage | 8V |
| Maximum Current | 6.25A |
| Maximum Power | 50W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 50 W |
| Output Voltage | 8 V |
| Output Current | 6.25 A |
| Series | N6700 Series |
