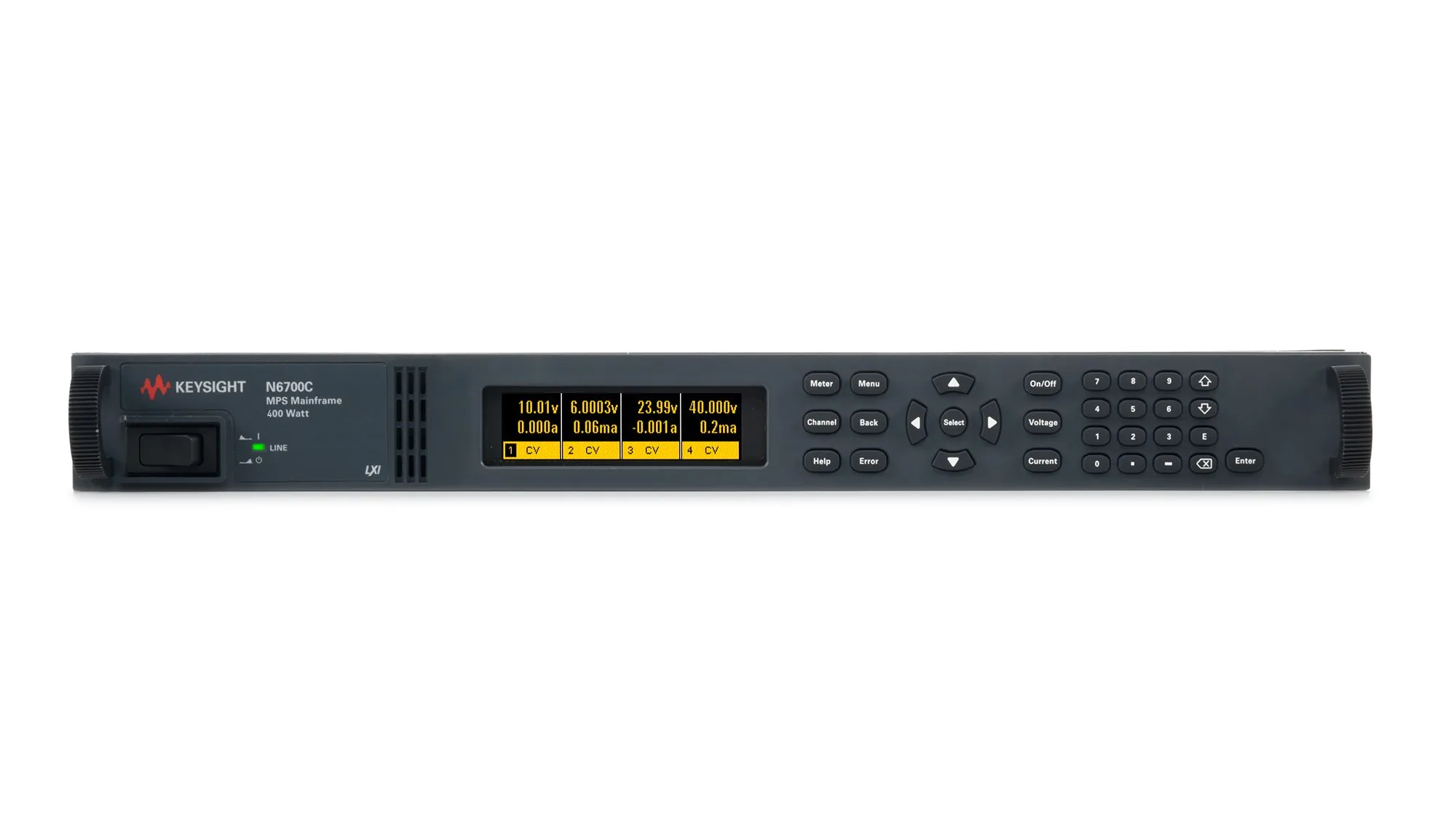

Keysight N6710C Modular Power System
Request a quote
Keysight N6710C is a 400W 1U modular power system mainframe accepting 1-4 DC power modules with GPIB, LAN, USB, and LXI Class C compliance.
Product details
| Model | N6710C |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6710C is a 400W 1U modular power system mainframe designed for laboratory and production environments. It accepts from 1 to 4 N6700 series DC power modules in any combination, with modules ordered separately. The system provides GPIB, LAN, and USB interfaces as standard, along with LXI Class C compliance.
Key Features
- 400W maximum total output power
- 1U rack height with compact design
- Accepts 1-4 DC power modules in any combination
- GPIB, LAN, and USB interfaces standard
- LXI Class C compliance
- Over 20 DC power module options (20W to 300W each)
- AC Input: 100-240 VAC, 50/60/400 Hz
- Protection: overvoltage, overcurrent, overtemperature
- Fast response times: 5 µs INH input, <10 µs fault detection
Applications
- Laboratory power supply systems
- Production test environments
- Modular power system configurations
- Multi-output power distribution
Specifications
| Maximum Output Power | 400 W |
| Output Modules | 1-4 modules |
| Rack Height | 1U |
| Input Voltage Range | 86-264 VAC |
| Input Frequency | 50/60/400 Hz |
| Power Consumption | 1000 VA typical |
| Interfaces | GPIB, LAN, USB |
| Compliance | LXI Class C |
| Module Options | 20+ different models, 20-300 W each |
| INH Input Response Time | 5 µs |
| Fault Detection Time | <10 µs |
