Keysight N6705C DC Power Analyzer

Overview

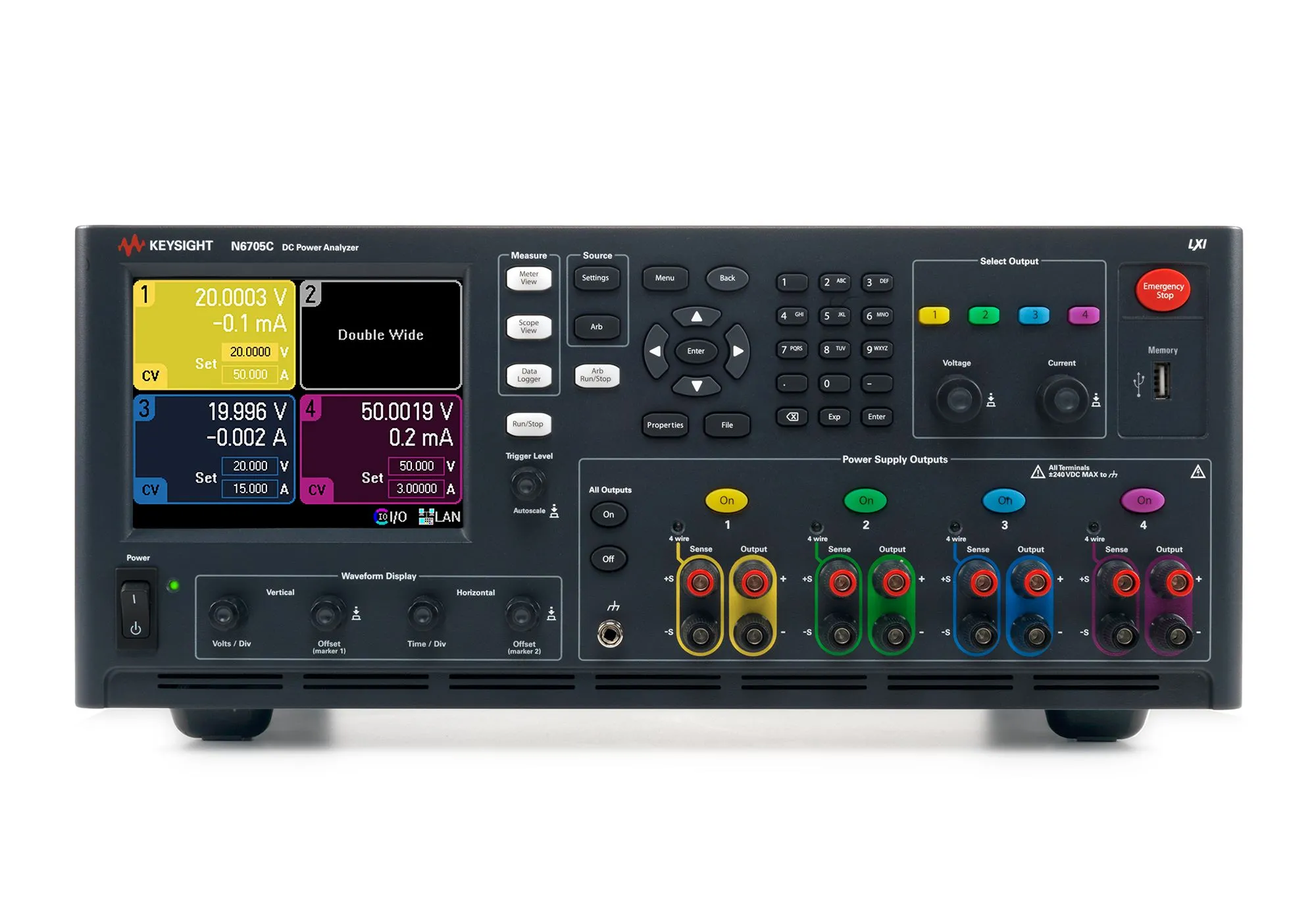

The Keysight N6705C DC Power Analyzer is an upgraded version of the N6705B offering 100% form, fit, function and price equivalency while meeting RoHS compliance requirements. This 4-slot modular instrument combines up to 4 DC power modules with integrated measurement and analysis capabilities in a single unit. It provides R&D engineers with a complete power sourcing and analysis solution that eliminates the complexity of assembling multiple instruments.

Key Features

• RoHS compliant — equivalent to N6705B with improved environmental standards
• 4-slot mainframe supporting up to 600W total power output
• Voltmeter and ammeter accuracy up to 0.025% + 50 µV and 0.025% + 8 nA respectively
• Oscilloscope digitizer captures voltage and current at up to 200 kHz with 512 kpts
• Arbitrary waveform generator up to 100 kHz bandwidth and 500W power output
• Data logger with measurements from 20 µs to 60 s intervals and 500M record capacity
• 4 GB non-volatile storage for data logs, oscilloscope traces, and instrument settings
• GPIB, USB 2.0, and 10/100 Base-T Ethernet LAN standard interfaces
• LXI Class C compliant for network control and automation
• Flexible, mix-and-match modular design with over 30 N6700 series modules available

Applications

• R&D testing and design validation of electronic devices
• Power consumption characterization and optimization
• Device-Under-Test (DUT) power supply validation
• Transient response and load change analysis
• Automated test system integration via GPIB, USB, or Ethernet
• Battery and energy storage system testing
