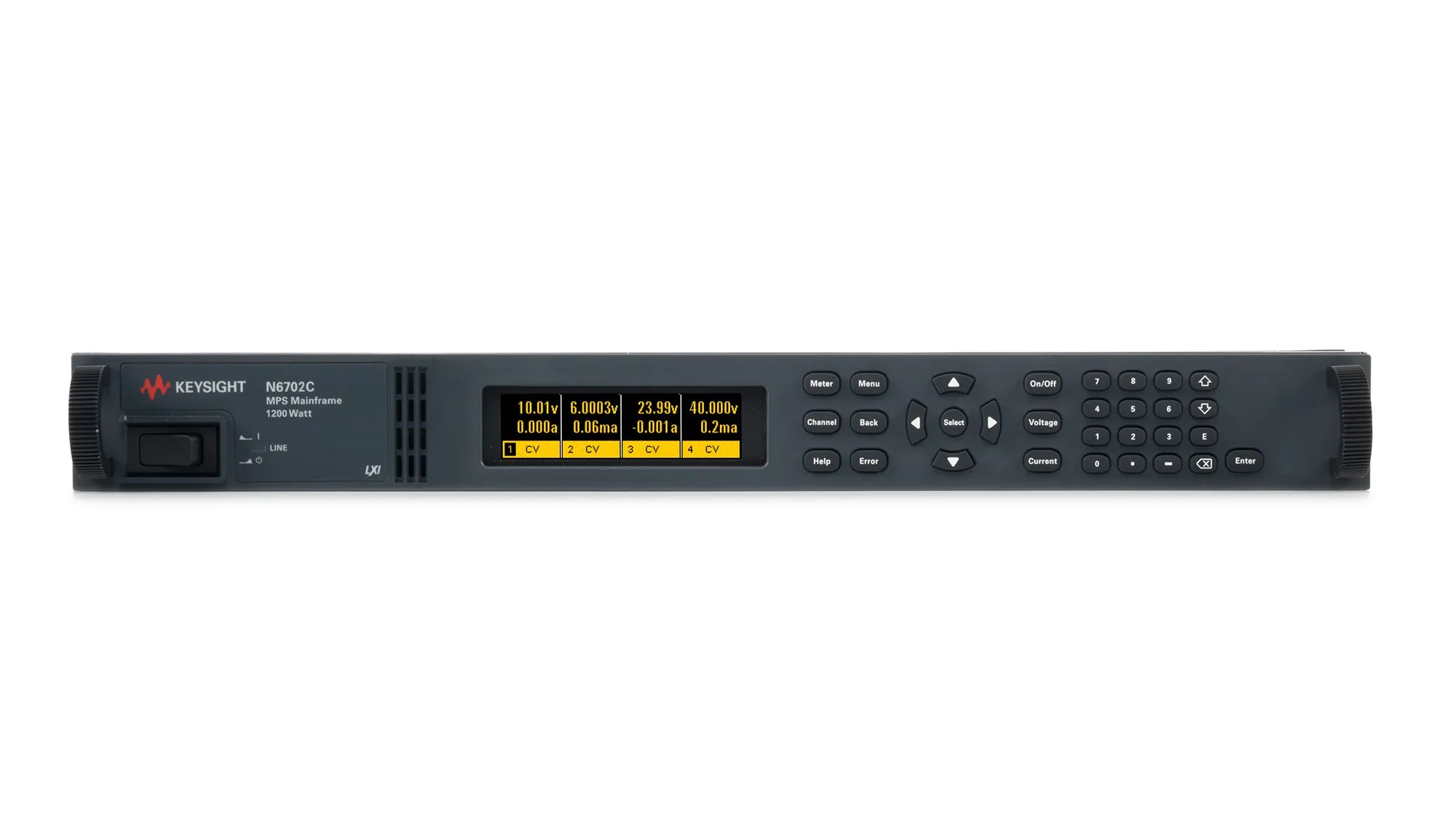

Keysight N6702C Modular Power System Mainframe

Overview

The Keysight N6702C is a 1200W, 1U modular power system mainframe that accepts 1 to 4 N6700 series DC power modules in any combination. This mainframe supports over 30 different DC power modules ranging from basic to high-precision designs. It delivers 1200W at 200-240VAC input and 600W at 100-120VAC input, with comprehensive test extensions and automation capabilities.

Key Features

• 1200W total output power (200-240VAC); 600W at 100-120VAC
• 4-slot mainframe accepts 1 to 4 N6700 series modules
• Support for over 30 different DC power modules (basic to precision)
• Programmable voltage and current with fast command processing
• Outputs connectable in parallel or series
• Programmable overvoltage and overcurrent protection
• 10 store-recall states with automated output sequencing
• Oscilloscope-like digitizer and arbitrary waveform output (N6750/60 modules)
• Automated sequencing of up to 512 output settings
• Advanced hardware and software triggering for ATE synchronization
• GPIB (SCPI), USB 2.0, and LAN interfaces; LXI Class C compliant
• Web server for browser-based system monitor and control
• Universal AC input with power factor correction
• Bright LCD display with full front-panel manual operation capability

Applications

• Automated test equipment (ATE) systems
• Production device testing with modular power flexibility
• High-speed transient and pulse testing (with N6750/60 modules)
• Battery drain analysis and source/measure unit testing (with N6780/N6783 modules)
