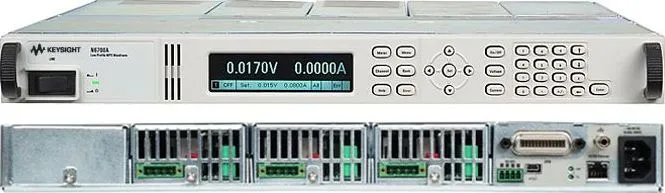

Keysight N6702A Modular Power System Mainframe
Request a quote
Keysight N6702A is a 1200W, 1U modular power system mainframe with 4 slots and support for over 30 DC power modules, featuring GPIB, USB, and LAN interfaces.
Product details
| Model | N6702A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6702A is a 1200W, 1U modular power system mainframe that accepts 1 to 4 N6700 series DC power modules in any combination (modules sold separately). This system delivers 1200W when operating from 200-240VAC input or 600W from 100-120VAC input. It features GPIB, USB 2.0, and LAN interfaces with LXI compliance for automated test system integration.
Key Features
- 1200W total output power (200-240VAC input); 600W at 100-120VAC
- 4-slot mainframe for 1 to 4 N6700 series module combinations
- Support for over 20 different DC power module types (20-300W range)
- Programmable voltage and current with fast command processing
- Outputs connectable in parallel or series
- Programmable overvoltage and overcurrent protection
- 10 store-recall states with output sequencing
- Universal AC input (100-240VAC, 50/60/400 Hz)
- Input range 86-264VAC with power factor correction
- GPIB (SCPI), USB 2.0, and LAN interfaces; LXI compliant
- Protection response: INH input 5µs shutdown time; fault detection <10µs
Applications
- Automated test equipment (ATE) systems
- Production device testing and characterization
- Multi-module test configurations for flexible power delivery
Specifications
| Maximum Voltage | 400V |
| Maximum Current | 3A |
| Maximum Power | 1200W |
| Channel/Port Count | 4 |
