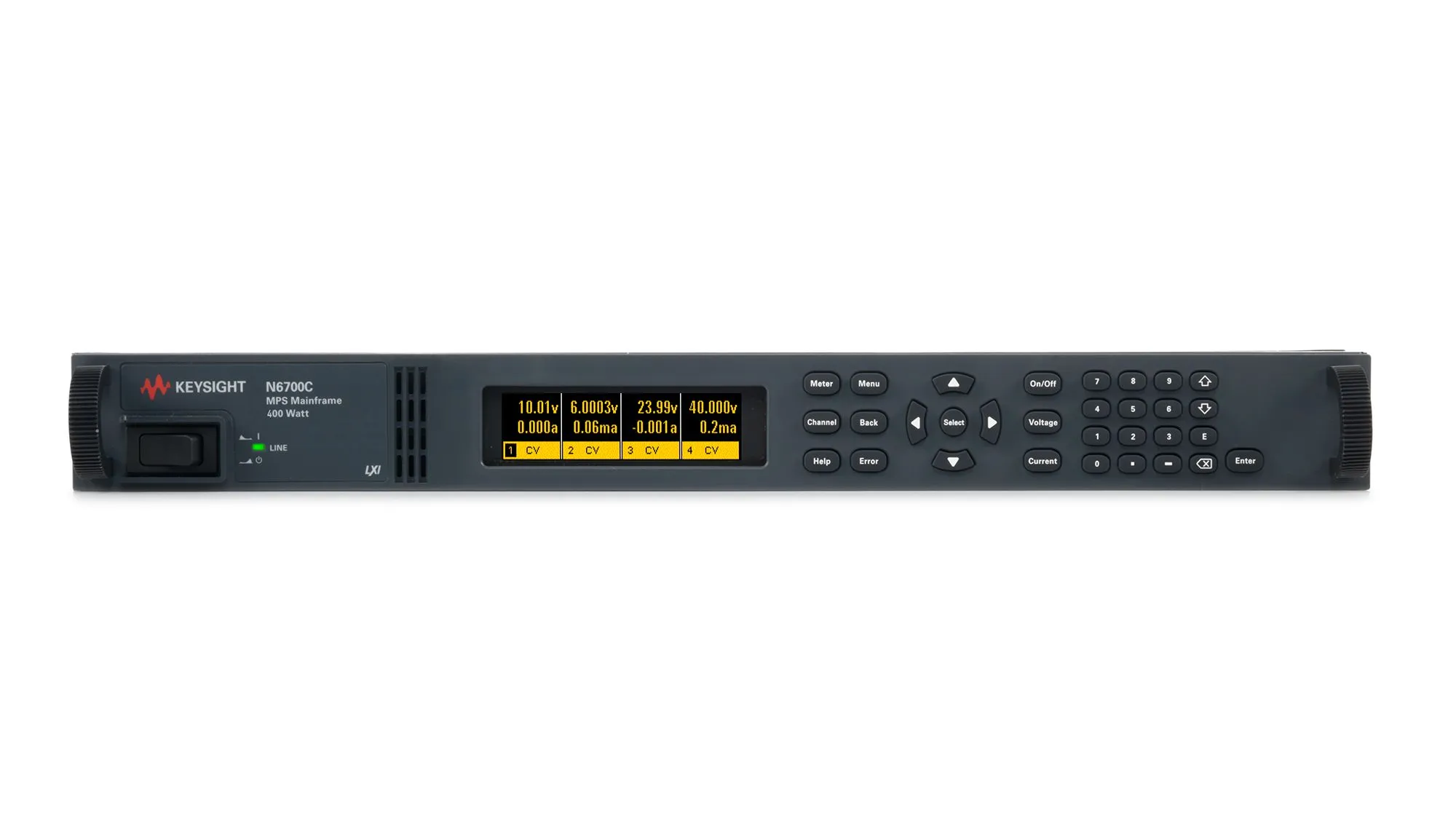

Keysight N6700C Modular Power System Mainframe

Overview

The Keysight N6700C is a 400 W, 1U high modular power system mainframe designed for automated test equipment (ATE) systems. It accepts up to 4 interchangeable N6700 series DC power modules, allowing users to customize voltage, current, and performance for each output. The system supports independent module configuration, making it suitable for applications requiring multiple power sources with varying specifications.

Key Features

• 400 W total output power capacity in compact 1U form factor
• 4-slot modular design accepts 1 to 4 N6700 series DC power modules
• Standard interfaces: GPIB, LAN (LXI Core compliant), and USB 2.0
• Fast command processing and settling times
• Power management feature allows custom power allocation per module
• Programmable voltage, current, overvoltage, and overcurrent protection
• Output sequencing with up to 512 programmed settings
• Hardware and software triggering for ATE system synchronization

Applications

• Automated test equipment (ATE) systems requiring multiple power sources
• Test and measurement applications with customized DC power requirements
• Power supply testing with integrated electronic load modules
