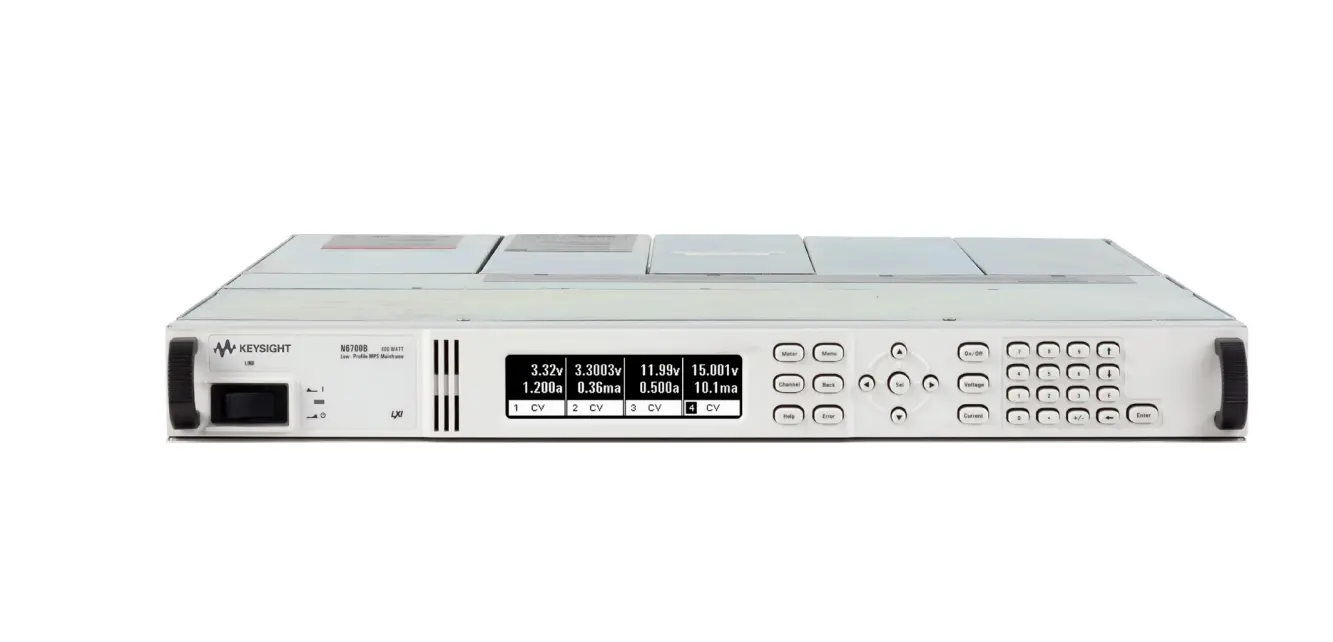

Keysight N6700B Modular Power System
Request a quote
Keysight N6700B — 400W 1U modular power system with 4 configurable slots for DC modules, GPIB, LAN, and USB connectivity for ATE and test applications.
Product details
| Model | N6700B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6700B is a 400W, 1U high modular power system mainframe designed for ATE and production test environments. It accepts 1 to 4 N6700 series DC power modules in any combination, providing flexible power solutions from 20W to 300W per module. The system features standard GPIB, LAN, and USB interfaces with LXI Class C compliance.
Key Features
- Maximum output power: 400W (sum of module power)
- Compact 1U form factor with 4-slot design
- Accepts 1 to 4 N6700 series DC power modules (20–300W modules available)
- Connectivity: GPIB, LAN, USB with LXI Class C compliance
- Fast command processing and improved throughput
- Optional output disconnect relays and High Speed Test Extensions
Electrical Specifications
- AC Input: 100–240 VAC, 50/60/400 Hz nominal
- Input Range: 86–264 VAC
- Power Consumption: 1000 VA typical
- Internal fuse protection (not customer accessible)
- INH inhibit response: 5 µs to shutdown
- Fault response on coupled outputs: <10 µs
Applications
- ATE systems for R&D, design validation, and manufacturing
- Bias power and stimulus in production test environments
- Systems requiring flexible, scalable DC power solutions
Specifications
| Maximum Current | Not Applicable |
| Maximum Power | 400W |
| Channel/Port Count | 4 |
