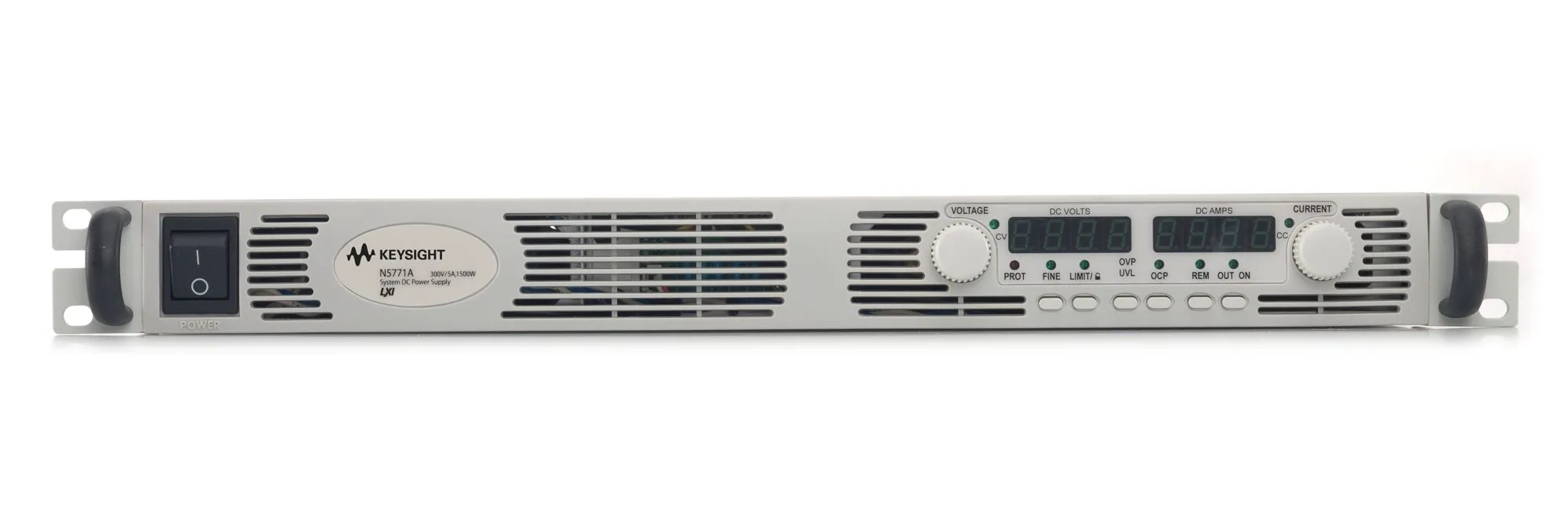

Keysight N5771A Single Output DC Power Supply

Overview

The Keysight N5771A is a single-output DC power supply from the N5700 Series, delivering 1500W of stable power in a compact 1U package. It provides 0-300V and 0-5A output with universal AC input (85-265 Vac), GPIB, LAN (LXI-Core), and USB interfaces. The front-to-back airflow design simplifies rack mounting in automated test equipment (ATE) systems without requiring additional space above or below the unit.

Key Features

• 0-300V, 0-5A output with 1500W power capacity
• Low noise output as low as 8 mVrms
• Compact 1U package with space-saving design
• Extensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
• Simple front panel operation with separate voltage and current control knobs
• Modern I/O: USB, LAN (LXI-Core), and GPIB interfaces
• Parallel capability: connect up to 4 units for higher current output
• Built-in voltage and current measurement
• Universal AC input with front-to-back airflow

Applications

• Automated test equipment (ATE) systems requiring stable, programmable DC power
• Laboratory testing and bench power applications
• High-voltage power requirements in compact form factors
• Research and development with multiple interface control options
• Equipment requiring low-noise power delivery
