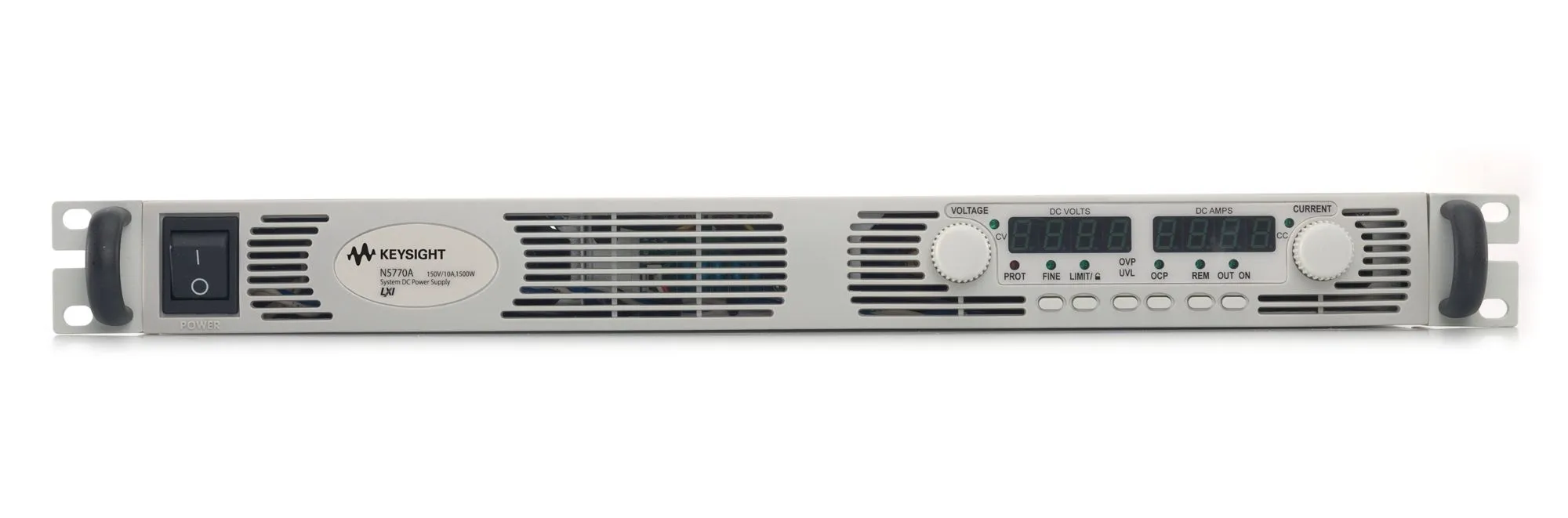

Keysight N5770A DC Power Supply
Request a quote
Keysight N5770A is a compact 1U DC power supply delivering 1500W at 150V/10A with low noise output, universal AC input, and LXI compliance.
Product details
| Model | N5770A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5770A is a 1500W DC power supply from the N5700 Series, delivering 150V at up to 10A in a compact 1U package. Designed for automated test equipment (ATE) applications, it features low noise output (as low as 8 mVrms), universal AC input (85–265 Vac), and modern connectivity including USB, LAN (LXI-Core), and GPIB interfaces.
Key Features
- Compact 1U package with 1500W output capacity
- 150V output at up to 10A
- Low noise output as low as 8 mVrms
- Extensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Simple front panel operation with separate voltage and current knobs
- USB, LAN (LXI-Core), and GPIB connectivity
- Front-to-back airflow simplifies rack mounting
- Connect up to 4 units in parallel for higher current
- Universal AC input: 85–265 Vac
Applications
- Automated test equipment (ATE) systems
- Production testing and validation
- Laboratory power applications
- Device characterization and burn-in testing
Specifications
| N5770A | 150 V10 A1500 W |
