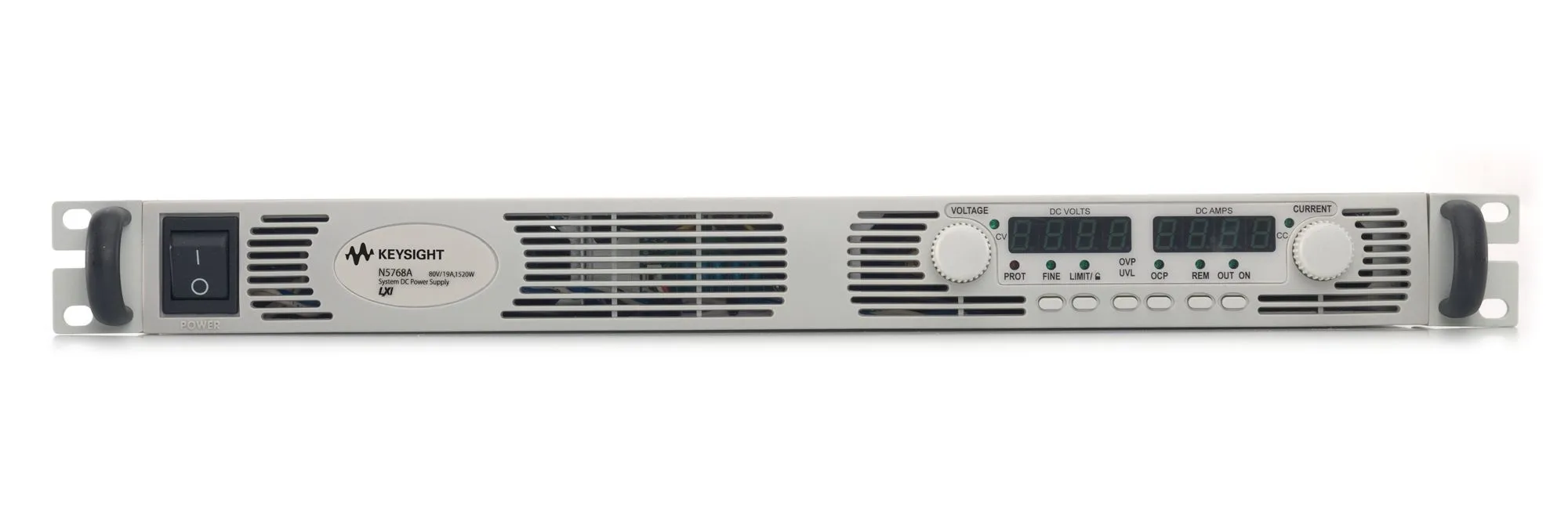

Keysight N5768A DC Power Supply
Request a quote
Keysight N5768A — 1520W DC power supply delivering 0–80V at 0–19A in a compact 1U package with USB, LAN, and GPIB interfaces.
Product details
| Model | N5768A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5768A is a 1520W single-output DC power supply in the N5700 Series. Rated for 0–80V at 0–19A output, it delivers low-noise power in a compact 1U form factor designed for automated test equipment (ATE) racks. The power supply features front-to-back airflow for efficient rack mounting and universal AC input (85–265 VAC) for worldwide operation.
Key Features
- 1520W output, 0–80V, 0–19A
- Compact 1U high-density package
- Low noise output: 8 mVrms typical
- Built-in protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Multiple interfaces: GPIB, LAN (LXI-Core), USB
- Constant voltage and constant current operation modes
- Parallel operation: connect up to 4 units for increased current capacity
- Universal AC input: 85–265 VAC
- Front-to-back airflow simplifies rack integration
Applications
- Automated test equipment (ATE) systems
- Device testing and validation
- Laboratory power applications
- Industrial test benches
Specifications
| N5768A | 80 V19 A1520 W |
