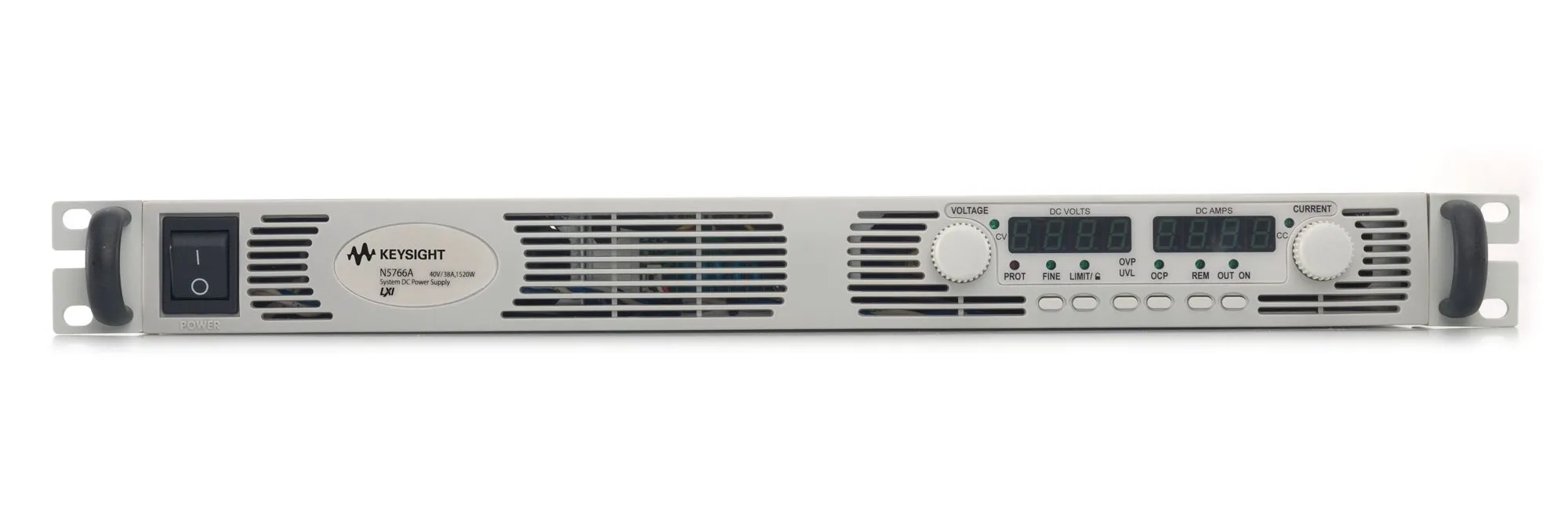

Keysight N5766A DC Power Supply
Request a quote
Keysight N5766A is a compact 1.5 kW single-output DC power supply (40V/38A) with ultra-low noise output and GPIB, LAN, USB interfaces with LXI compliance.
Product details
| Model | N5766A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5766A is a single-output programmable DC power supply in the N5700 Series, rated for 40V, 38A output with 1520 watts maximum power. It features ultra-low noise output (8 mVrms), universal AC input (85-265 VAC), and modern interfaces including GPIB, LAN, and USB with LXI-Core compliance. The compact 1U form factor allows for efficient rack mounting with front-to-back airflow.
Key Features
- Output: 40V, 38A (1520 watts)
- Ultra-low noise output: 8 mVrms typical
- Universal AC input: 85-265 VAC
- Compact 1U form factor with efficient front-to-back airflow
- Modern interfaces: GPIB, LAN (LXI-Core), USB
- Front panel: separate voltage and current knobs for easy operation
- Comprehensive protection: overcurrent, overvoltage, and undervoltage
- Programmable: 15 store/recall states
- Stackable: up to 4 units in parallel for higher current
- Temperature monitoring with overtemperature protection
Applications
- Automated test equipment (ATE) systems
- Component testing and validation
- Laboratory and bench testing
- Equipment development and prototyping
Specifications
| Maximum Voltage | 40V |
| Maximum Current | 37A |
| Maximum Power | 1500W |
| Channel/Port Count | 1 |
