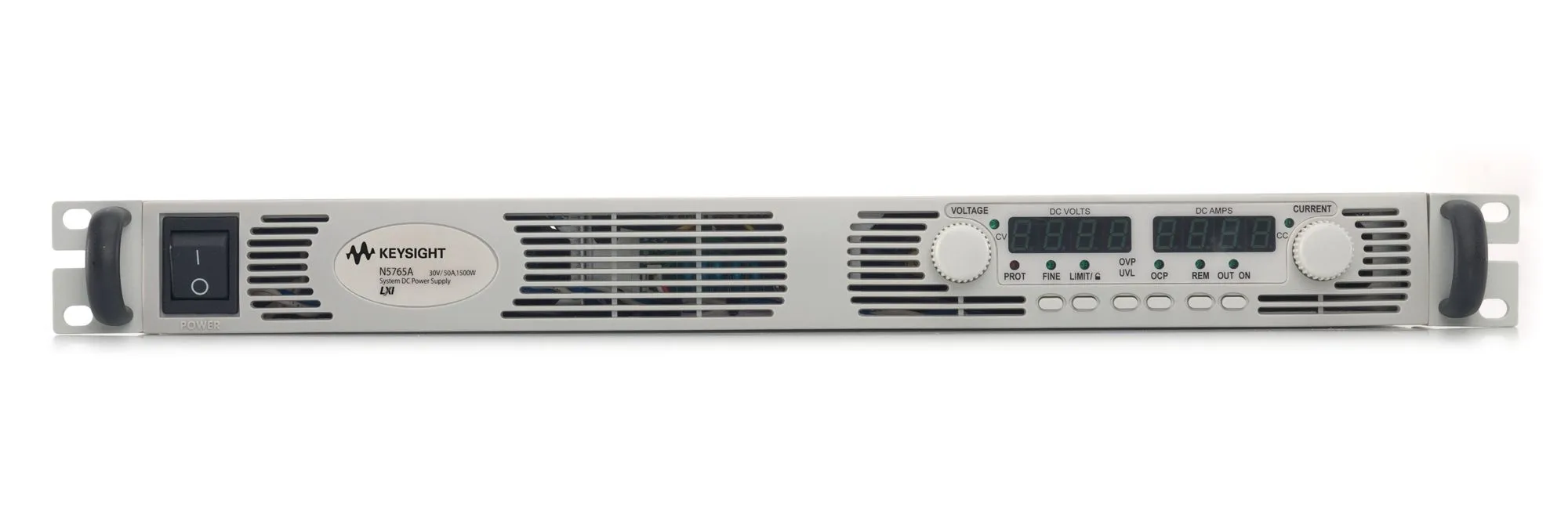

Keysight N5765A DC System Power Supply
Keysight N5765A supplies 0–30V at 0–50A (1500W) with low-noise output (8 mVrms), GPIB/LAN/USB control, and front-to-back airflow for ATE rack mounting.
Product details
| Model | N5765A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5765A is a single-output DC power supply in the N5700 Series, delivering 0–30V at 0–50A with a maximum output of 1500W. Designed for automated test equipment and laboratory applications requiring mid-range voltage and moderate current, the N5765A offers programmable output control with comprehensive protection features.
The power supply features low-noise output (8 mVrms typical), modern connectivity via GPIB, LAN, and USB interfaces, and a built-in web server for remote monitoring and control. Its front-to-back airflow design enables efficient rack integration without requiring additional cooling clearance, making it ideal for dense test environments.
Key Features
- Output: 0–30V, 0–50A, 1500W
- 1U package with front-to-back airflow for stackable rack mounting
- Universal AC input (85–265 VAC)
- Low-noise output (8 mVrms typical)
- Overvoltage, overcurrent, and under-voltage protection
- Separate control knobs for voltage and current adjustment
- GPIB, LAN (LXI-Core), and USB connectivity
- Built-in web server for remote control and monitoring
- Support for 4-unit parallel operation
- Overtemperature protection
Applications
- Automated test equipment for mid-voltage power applications
- Power converter and inverter characterization testing
- Semiconductor device testing and qualification
- Laboratory and R&D applications with remote control needs
- Production burn-in and reliability testing
Specifications
| Maximum Voltage | 30V |
| Maximum Current | 50A |
| Maximum Power | 1500W |
| Channel/Port Count | 1 |
| Phases | 3 |
