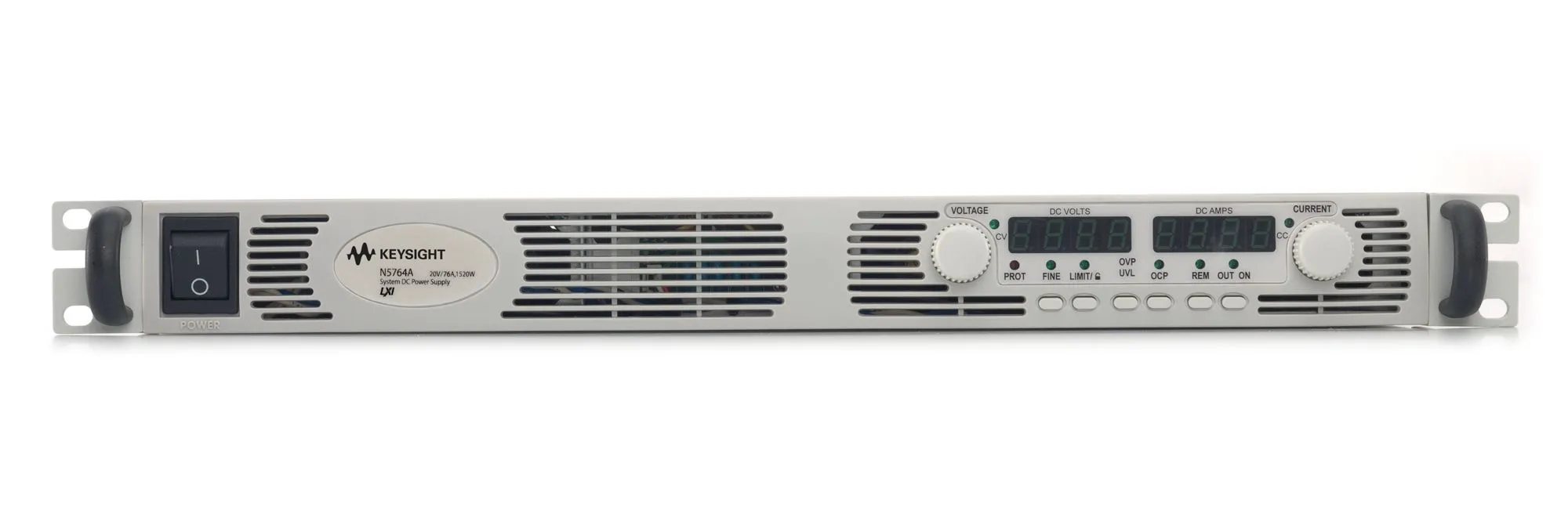

Keysight N5764A DC System Power Supply

Overview

The Keysight N5764A is a single-output DC power supply in the N5700 Series, delivering 0–20V at 0–76A with a maximum output of 1520W. This model provides stable, programmable power in a compact 1U form factor suited for automated test environments. The supply features low-noise output (8 mVrms typical), modern connectivity through GPIB, LAN, and USB interfaces, and a built-in web server for remote operation.

Designed for efficient rack mounting, the N5764A employs front-to-back airflow, eliminating the need for additional cooling space above or below the unit. Multiple units can be paralleled to increase available current for demanding test applications.

Key Features

• Output: 0–20V, 0–76A, 1520W
• 1U package with front-to-back airflow for dense rack integration
• Universal AC input (85–265 VAC)
• Low-noise output (8 mVrms typical)
• Overvoltage, overcurrent, and under-voltage protection
• Separate voltage and current control knobs for simple operation
• GPIB, LAN (LXI-Core), and USB connectivity
• Built-in web server for remote monitoring and control
• Support for 4-unit parallel operation
• Overtemperature protection

Applications

• Automated test equipment for mid-voltage power applications
• Power converter and inverter testing
• Semiconductor device characterization
• Laboratory and R&D testing with remote control requirements
• Production burn-in and reliability testing
