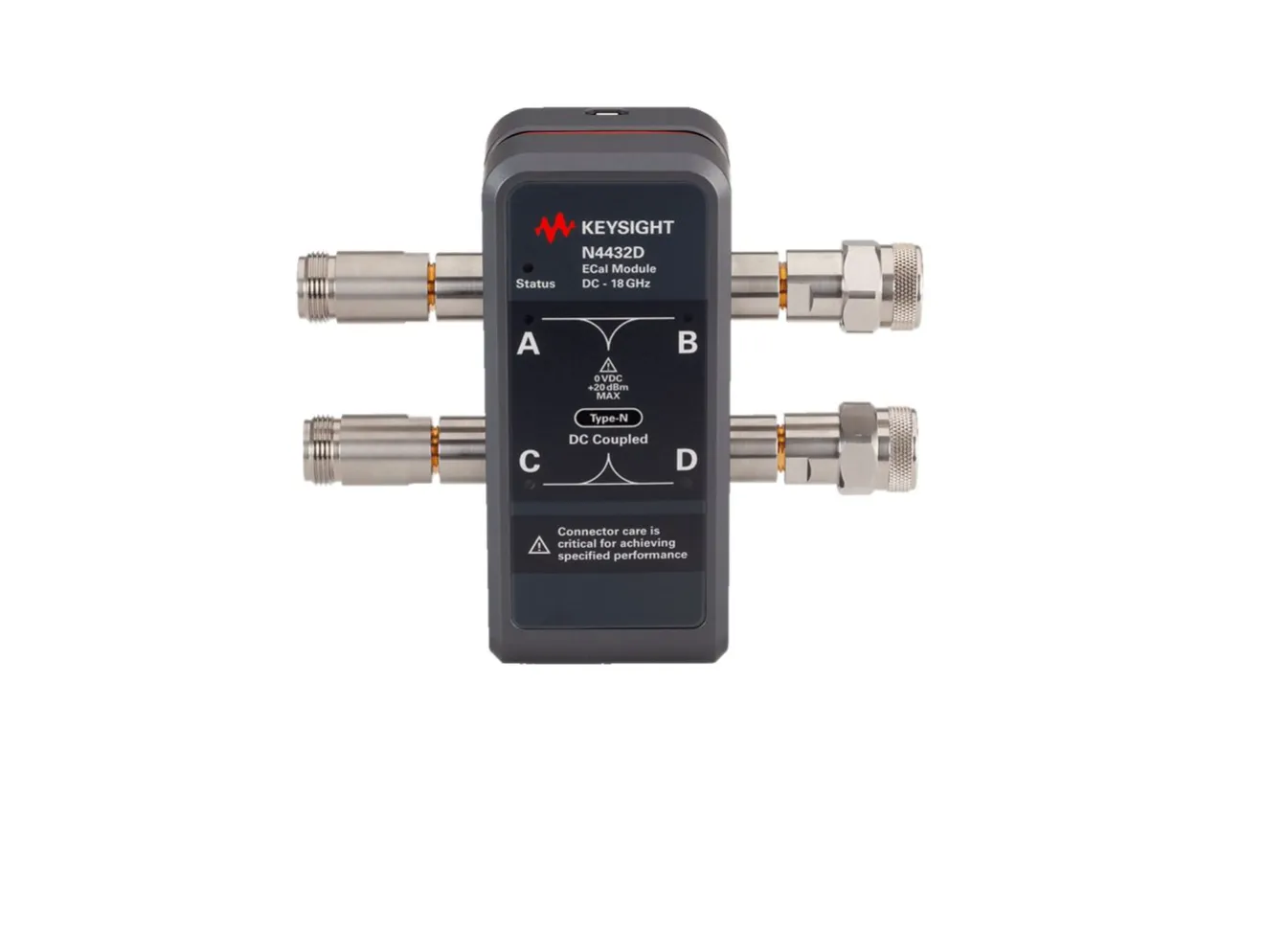

Keysight N4432D RF Electronic Calibration Module

Overview

The Keysight N4432D is a precision 4-port RF electronic calibration (ECal) module designed to simplify and accelerate the calibration of Keysight vector network analyzers. ECal eliminates the need for traditional mechanical calibration kits, reducing the time required for full 4-port calibration by more than half while maintaining high accuracy. The module supports flexible connector configurations, mixing Type-N and 3.5 mm connectors in both male and female options up to 18 GHz.

The N4432D connects to vector network analyzers via USB for direct firmware control, minimizing operator interaction and the associated risk of errors. This approach also reduces wear and tear on test port connectors, lowering long-term maintenance costs.

Key Features

• 4-port RF ECal module with precision accuracy comparable to mechanical kits
• Frequency coverage from DC/300 kHz to 18 GHz (DC capability with Option 0DC)
• Mixed Type-N and 3.5 mm connector options (female and male selectable per port)
• Fast full 4-port calibration in less than half the time of mechanical kits
• USB interface for direct control from Keysight PNA and ENA series analyzers
• NIST traceable calibration with documented uncertainties
• Reduced connector wear and lower repair costs

Applications

• Vector network analyzer calibration and maintenance
• Broadband device modeling and characterization
• Time-domain and signal integrity analysis
• Production test environments requiring frequent calibration
