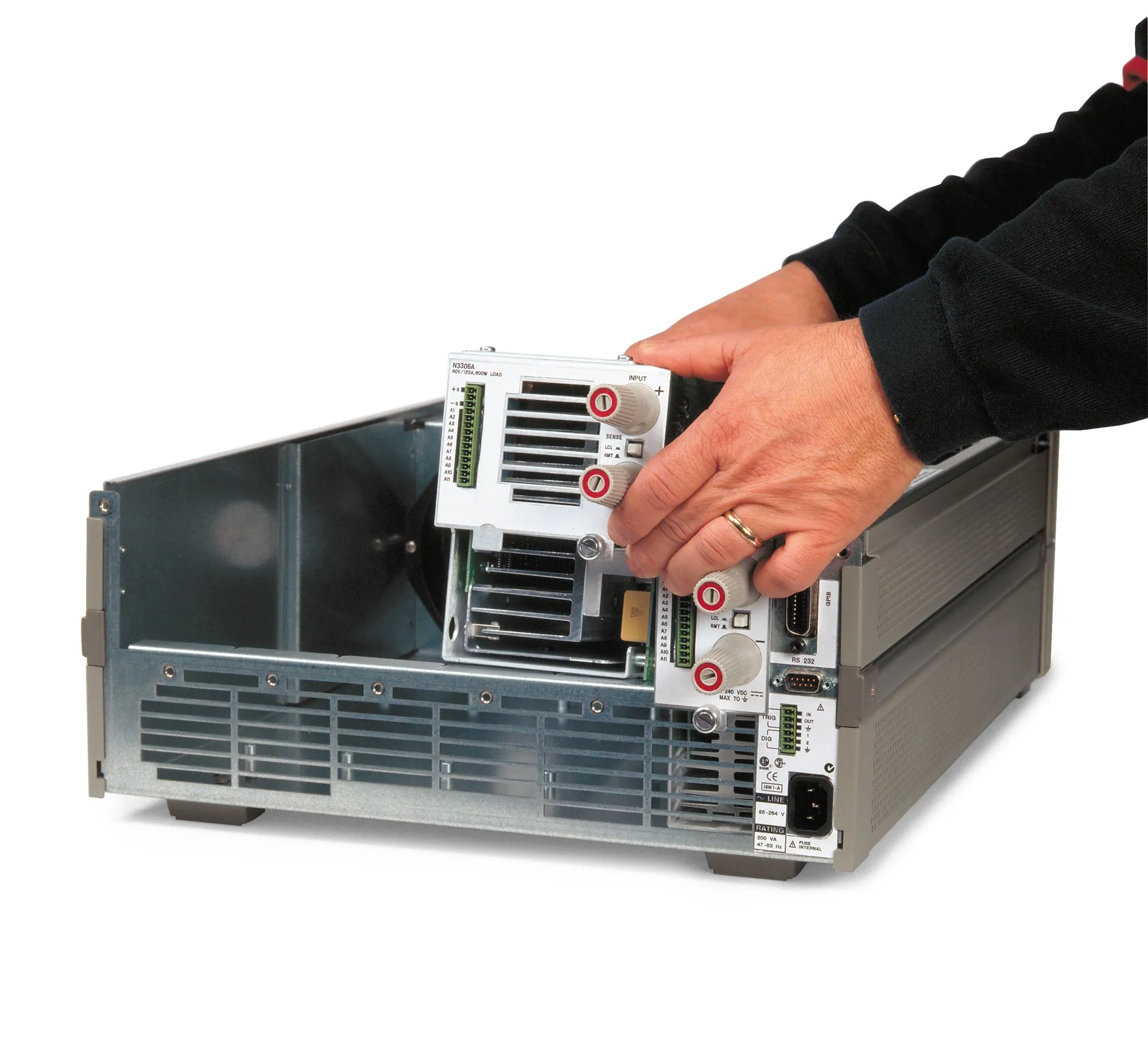

Keysight N3306A Electronic Load Module
Request a quote
Keysight N3306A is a 600W DC electronic load module with 0-120A current and 0-60V voltage range, supporting constant current, voltage, and resistance modes.
Product details
| Model | N3306A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N3306A is a 600W electronic load module designed for use with the N3300A or N3301A mainframe in automated test equipment systems. It provides precise control and measurement capabilities for testing power supplies, DC-to-DC converters, and batteries.
Key Features
- 600W maximum power handling (0-120A, 0-60V)
- Three operating modes: constant current, constant voltage, and constant resistance
- 0.1% programming accuracy with 0.05% measurement accuracy
- Fast and accurate waveform digitization capabilities
- 16-bit measurement system for voltage, current, and power
- Single GPIB address control within mainframe
Applications
- Automated test equipment for power supply verification
- DC-to-DC converter testing and validation
- Battery testing and characterization
- Multi-channel simultaneous testing of multiple outputs
- High-volume production test systems
Specifications
| Channel/Port Count | 2 |
| Maximum Power | 600W |
| Maximum Voltage | 60V |
| Maximum Current | 120A |
| Type | Load Module |
| Series | N3300 Series |
