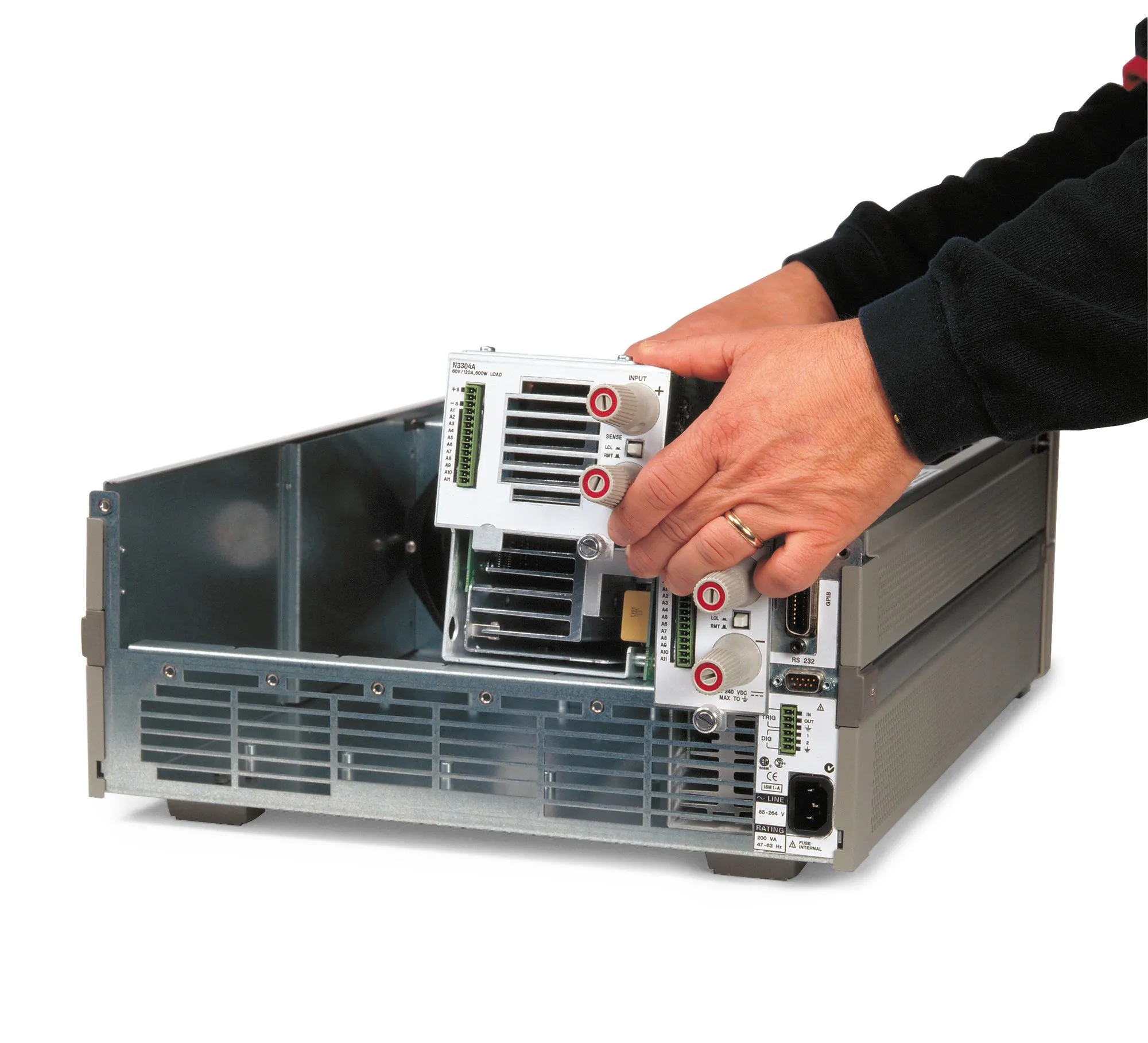

Keysight N3304A Electronic Load Module
Request a quote
Keysight N3304A is a 300W electronic load module (0-60A, 0-60V) with constant current, voltage, and resistance modes for DC power supply testing.
Product details
| Model | N3304A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N3304A is a 300W electronic load module designed for integration into N3300A or N3301A mainframes. It features a 16-bit measurement system for simultaneous voltage, current, and power monitoring. The N3304A supports constant current, constant voltage, and constant resistance operating modes, making it suitable for testing DC power supplies, DC-to-DC converters, and battery systems.
Key Features
- 300W maximum power rating (0-60A, 0-60V)
- Constant current mode with 6A/60A ranges and 0.1% + 7.5-15mA accuracy
- Constant voltage mode with 6V/60V ranges and 0.1% + 3-8mV accuracy
- Constant resistance mode with four selectable ranges (0.033Ω to 2kΩ)
- 16-bit simultaneous voltage and current measurement
- Programmable slew rate and transient generation
- Single GPIB address control and readback
- Waveform digitization capability
Applications
- Multi-output DC power supply testing
- DC-to-DC converter verification
- Battery testing and characterization
- Automated test equipment (ATE) system integration
- High-volume manufacturing test systems
Specifications
| Maximum Current | 60A |
| Type | Load Module |
| Series | N3300 Series |
