Keysight N3301A is a 2-slot half-rack electronic load mainframe with up to 600W capacity for flexible test system configuration and simultaneous multi-source power testing.
Product details
| Model | N3301A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview

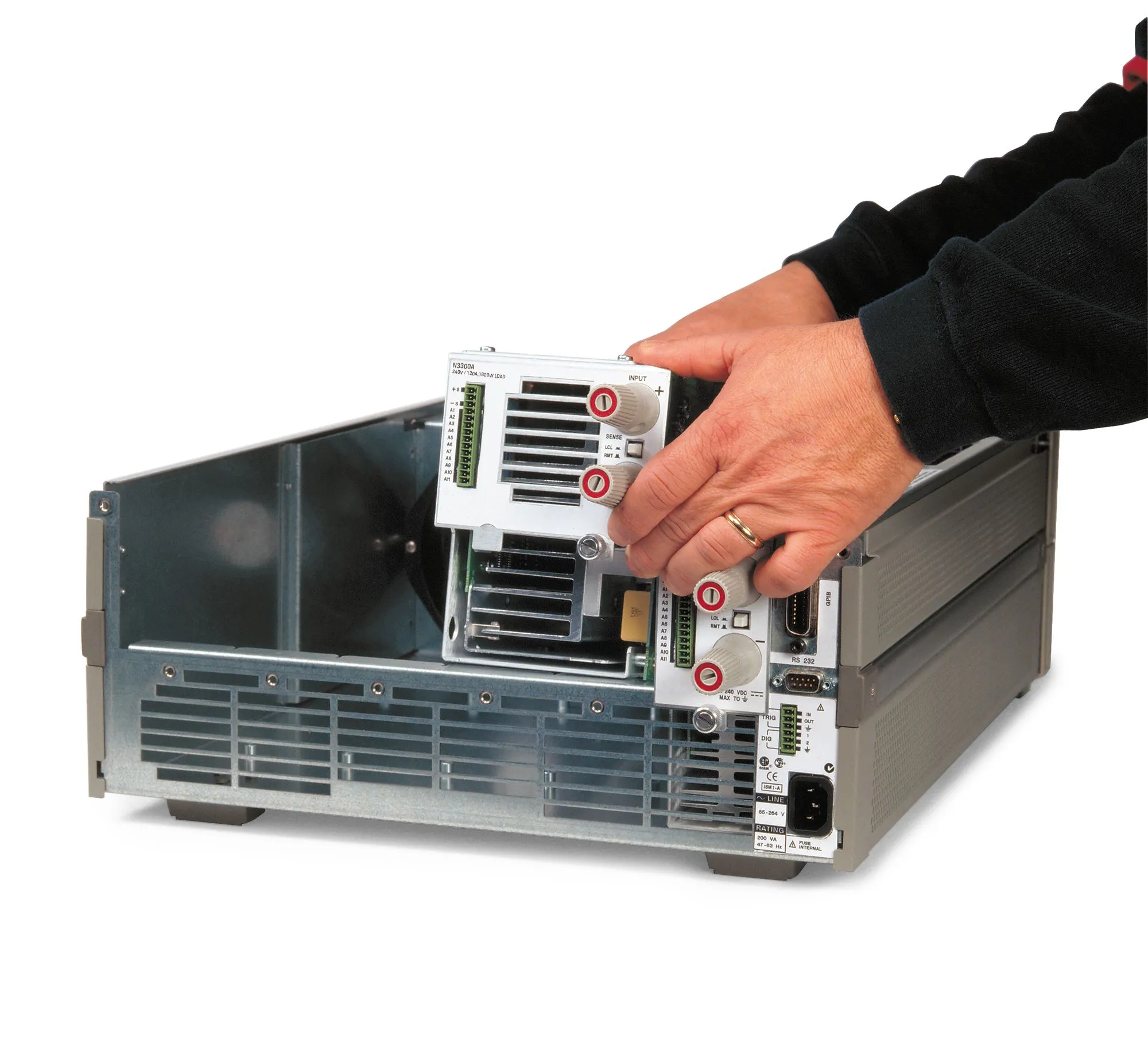

The Keysight N3301A is a half-rack width electronic load mainframe with 2 slots for flexible test system configuration. The mainframe accepts various combinations of N330x load modules, supporting total system power up to 600W. It is designed for simultaneous testing of multiple power sources, allowing engineers to verify multiple outputs of complex power supply designs without sequential testing.
Key Features
- 2-slot half-rack width mainframe
- Total maximum power capacity of 600W
- Compatible with N3302A, N3303A, N3304A, N3307A (2 modules) or N3305A, N3306A (1 each)
- Maximum voltage input: 240V (with N3303A module)
- Maximum current input: 120A (with N3306A module)
- 16-bit simultaneous voltage, current, and power measurement
- Single GPIB address for complete control of all load modules
- Constant current, constant voltage, and constant resistance modes
- Fast command processing
Applications
- Multi-output DC power supply testing
- DC-DC converter characterization and verification
- Simultaneous testing of multiple single-output power sources
- Automated test equipment (ATE) systems
Specifications
| Channel/Port Count | 2 |
| Maximum Power | 600W |
| Maximum Current | Not Applicable |
| Power Range Selector | 500-999 |
| Current Range Selector | 0-2.49 |
| Voltage Range Selector | 200-299 |
| Maximum Power | 600 W |
| Maximum Current | 2.3 A |
| Maximum Voltage | 250 V |
| Input Voltage | 100 to 250 VAC |
| Mounting Type | Bench Top |
| Series | N3300 Series |
