Keysight N3300A is a modular 6-slot electronic load mainframe with 1800W total power capacity for testing DC power supplies and converters.
Product details
| Model | N3300A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview

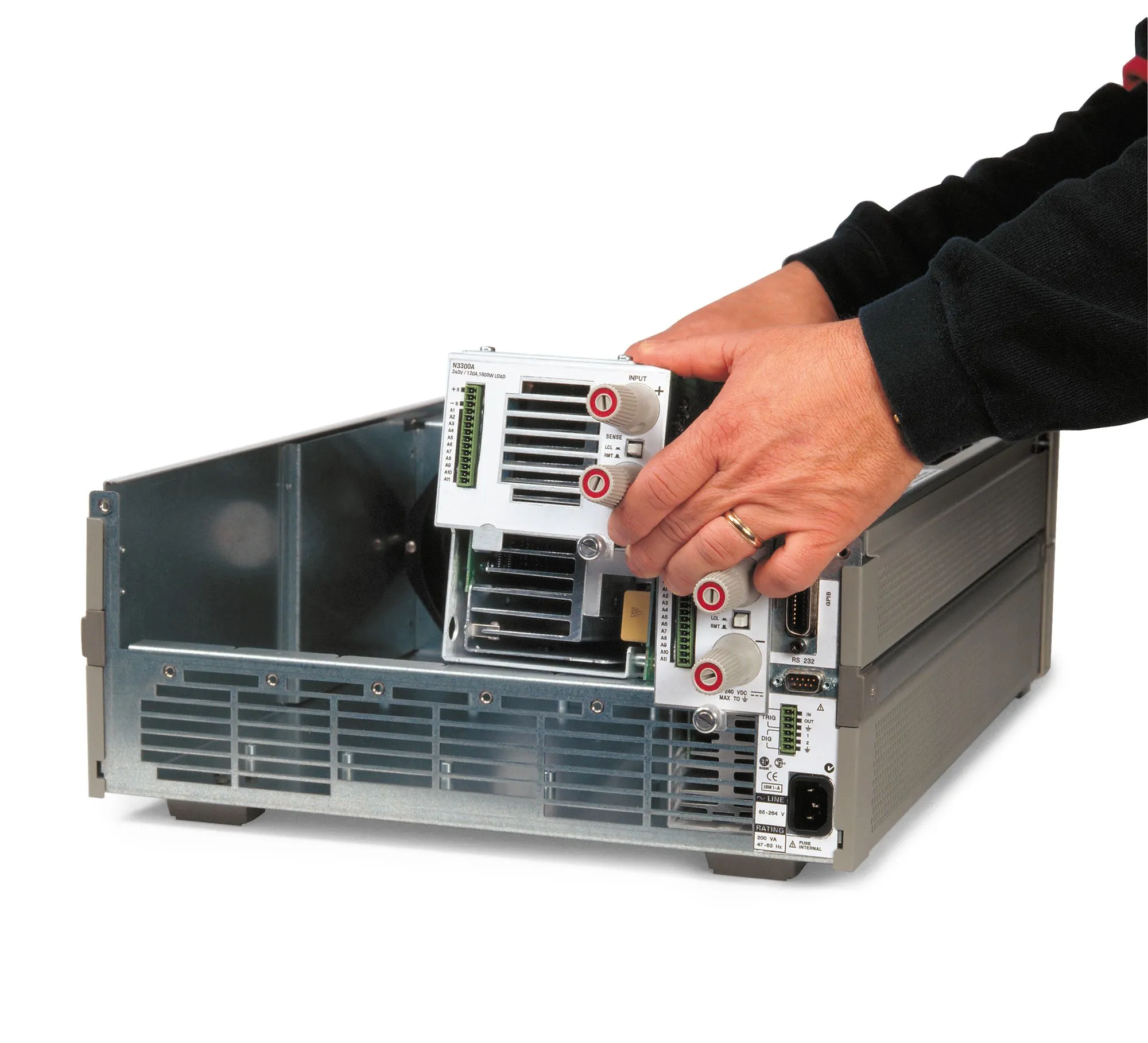

The Keysight N3300A is a full-rack width modular electronic load mainframe with six slots that accepts user-installable load modules. It is designed for testing multiple output DC power supplies, DC-to-DC converters, and batteries in automated test equipment systems. The mainframe includes 16-bit voltage, current, and power measurement systems for each channel, enabling simultaneous measurement of all outputs.
Key Features
- 6 slots for flexible module configuration - holds up to 1800W total power
- Modular design with load modules ranging from 150W to 600W
- 16-bit measurement system for voltage, current, and power on each module
- Maximum input voltage: 240V, Maximum input current: 120A
- Single GPIB address controls all load modules within one mainframe
- Programming accuracy: 0.1% + 4 mA, Measurement accuracy: 0.05% + 2.5 mA
- GPIB and RS232 connectivity
Applications
- High-volume DC power supply testing and verification
- Testing multiple output power sources simultaneously
- DC-DC converter design and validation
- Battery testing and characterization
- Automated test equipment systems for power electronics
Specifications
| Maximum Power | 1800W |
| Maximum Current | Not Applicable |
| Power Range Selector | 1,000-2,499 |
| Current Range Selector | 2.5-4.9 |
| Voltage Range Selector | 200-299 |
| Maximum Power | 1.8 kW |
| Maximum Current | 4.2 A |
| Maximum Voltage | 250 V |
| Input Voltage | 100 to 250 VAC |
| Mounting Type | Bench Top |
| Series | N3300 Series |
