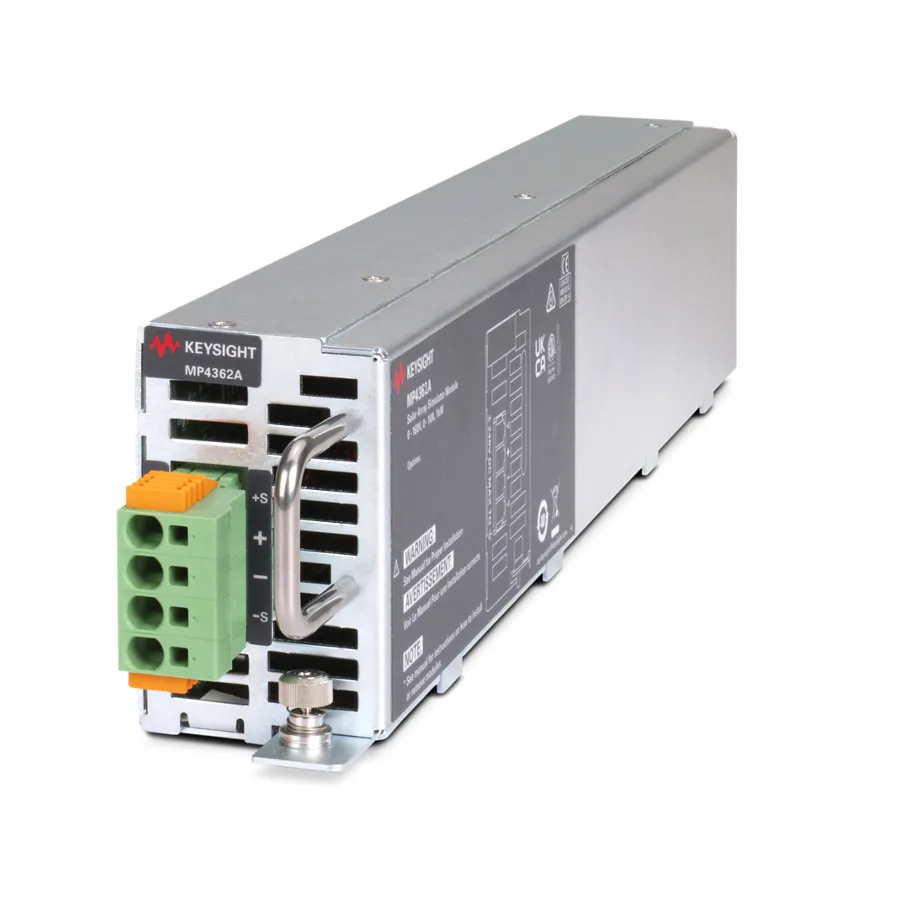

Keysight MP4362A Solar Array Simulator Module
Keysight MP4362A is a 1000W solar array simulator module with 130V/8A output and rectangular I-V characteristics for satellite power testing.
Product details
| Model | MP4362A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight MP4362A is a 1kW solar array simulator (SAS) DC power module engineered to replicate solar panel output characteristics. With a 0-130V and 0-8A output range, it delivers up to 1000W and functions as a current source with minimal output capacitance. The module enables rapid I-V curve generation for precise simulation of various solar arrays under diverse environmental conditions including temperature fluctuations, aging effects, eclipse, and spacecraft spin.
The MP4362A features rectangular I-V characteristics typical of standard power supplies, making it suitable for comprehensive satellite power system testing and validation where accurate solar panel behavior simulation is essential.
Key Features
- Output Range: 0-130V, 0-8A
- Maximum Power: 1000W
- Rectangular I-V characteristics
- Programming Accuracy (23°C ±5°C):
- Voltage (Fixed Mode): 0.075% + 25 mV
- Current (Fixed Mode): 0.2% + 10 mA
- Output Voltage Ripple & Noise:
- Peak to peak: 500 mV
- RMS: 50 mV
- Output Current Ripple & Noise (Simulator/Table Mode):
- Peak to peak: 48 mA
- RMS: 6 mA
- Minimal output capacitance for rapid I-V curve transitions
Applications
- Satellite power system testing and validation
- Solar panel simulation under environmental conditions
- Multi-segment PV array representation
- Temperature and solar irradiation variation testing
Specifications
| Power Rating | 1000 W |
| Output Voltage | 130 V |
| Output Current | 8 A |
| Type | Module |
| Series | MP4300A Series |
| Programmable | Yes |
