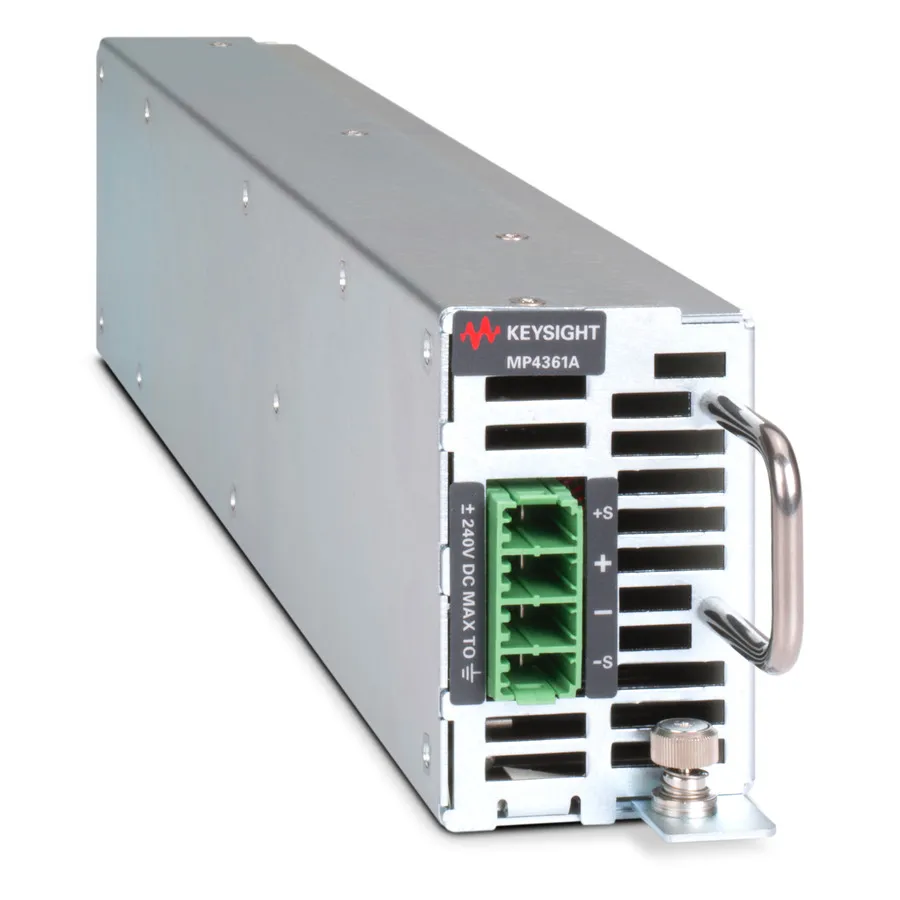

Keysight MP4361A Solar Array Simulator Module
Keysight MP4361A is a 1000W solar array simulator module with auto-ranging capability, 160V/10A output, and precision voltage/current sensing.
Product details
| Model | MP4361A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight MP4361A is a high-performance 1kW solar array simulator (SAS) DC power module designed to replicate the output characteristics of solar panels. Operating from 0-160V at up to 10A, it serves as a current source with minimal output capacitance, enabling rapid I-V curve alterations for precise simulation of different solar arrays. The auto-ranging capability optimizes performance across the full voltage and current range.
The MP4361A is ideal for satellite testing applications where accurate solar panel behavior simulation under varying environmental conditions (temperature, age, eclipse, spin) is critical. It functions as both a source and load, making it versatile for comprehensive power system validation.
Key Features
- Auto-ranging output (0-160V, 0-10A)
- Maximum Power: 1000W
- Source and sinking capabilities
- Programming Accuracy (23°C ±5°C):
- Voltage (Fixed Mode): 0.05% + 25 mV
- Current (Fixed Mode): 0.1% + 7 mA
- Output Voltage Ripple & Noise:
- Peak to peak: 500 mV
- RMS: 50 mV
- Output Current Ripple & Noise (Simulator/Table Mode):
- Peak to peak: 48 mA
- RMS: 6 mA
- Minimal output capacitance for rapid I-V curve response
Applications
- Satellite power system testing and validation
- Solar panel behavior simulation under environmental stress
- Multi-segment PV array emulation
- Temperature and irradiation variation testing
Specifications
| Power Rating | 1000 W |
| Output Voltage | 160 V |
| Output Current | 10 A |
| Type | Module |
| Series | MP4300A Series |
| Programmable | Yes |
