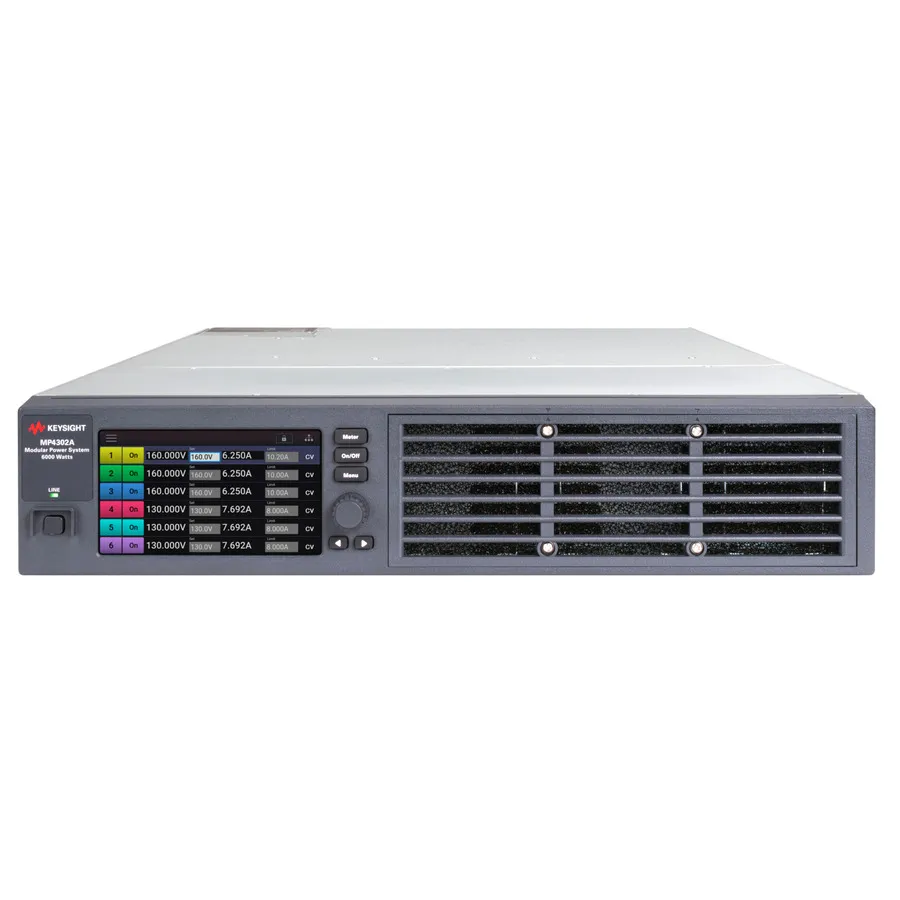

Keysight MP4302A Modular Power System Mainframe
Keysight MP4302A is a 6-slot modular power system mainframe with 6kW total capacity for 380-480VAC input, featuring LXI, LAN, and USB connectivity.
Product details
| Model | MP4302A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight MP4302A is a modular power system mainframe designed for Solar Array Simulator (SAS) applications, particularly for satellite power system testing. It accommodates up to six modules (sold separately) and operates from 380/400/480 VAC three-phase input with a total power capacity of 6 kW. The compact 2U rack-mount form factor (19 inches wide) integrates multiple power modules for flexible test configurations.
The MP4302A features a 5-inch high-resolution touch display for easy control and monitoring of all outputs in real time. It includes comprehensive connectivity options: LAN, USB-C, and optional GPIB interfaces allow integration into automated test systems.
Key Features
- Accommodates up to 6 modules (sold separately)
- AC Input: 380/400/480 VAC three-phase
- Total Power: 6 kW
- Rack Space: 2U high, 19-inch wide
- Interfaces: LXI, LAN, USB-C, optional GPIB
- 5-inch high-resolution touch display
- Over-voltage, over-current, and over-temperature protection per module
- Fault detection and rapid shutdown capability (10 microseconds)
Applications
- Satellite power system testing and validation
- Solar panel simulation under various environmental conditions
- Temperature and irradiation variation testing
- Eclipse and spin condition simulation
Specifications
| Power Rating | 6000 W |
| Input Voltage | 400 VAC |
| Type | Mainframe |
| Series | MP4300A Series |
| Interface | LAN, LXI, USB |
| Programmable | Yes |
