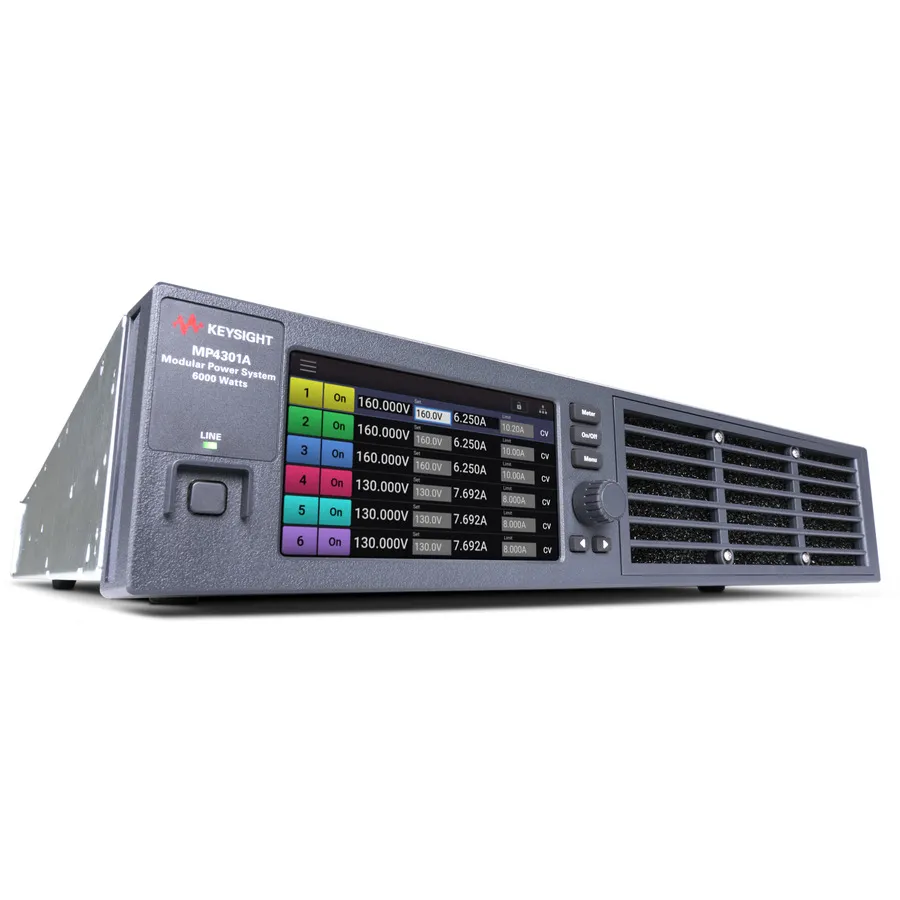

Keysight MP4301A Solar Array Simulator
Request a quote
Keysight MP4301A is a 6-slot modular solar array simulator with 6 kW total power, 200/208 VAC input, and LXI/LAN/USB interfaces for satellite power system testing.
Product details
| Model | MP4301A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight MP4301A is a modular solar array simulator mainframe designed to accurately emulate the output characteristics of solar arrays for satellite power system testing. As a programmable DC power source with six module slots and 6 kW total capacity, it faithfully reproduces the unique I-V characteristics of solar panels under various environmental conditions and operational scenarios including temperature variation, irradiation changes, eclipse, and spin.
Key Features
- 6 module slots for flexible power system configuration (modules sold separately)
- Total Power Capacity: 6 kW across all outputs
- AC Input: 200/208 VAC, 3-phase
- Per-Module Maximum: up to 160 V, 10 A, 1000 W
- 5-inch high-resolution touch display for intuitive front-panel control
- Interfaces: LXI, LAN, USB with optional GPIB connectivity
- Advanced IV-curve generation and sequencing capabilities
- Rear-loading modules for minimal installation and service time
- Over-voltage, over-current, and over-temperature protection
Applications
- Satellite power system reliability testing and validation
- Solar array characteristic emulation under varying conditions
- Photovoltaic segment simulation with multiple configurations
- Eclipse and spin scenario testing
Specifications
| Power Rating | 6000 W |
| Input Voltage | 200 VAC |
| Type | Mainframe |
| Series | MP4300A Series |
| Interface | LAN, LXI, USB |
| Programmable | Yes |
