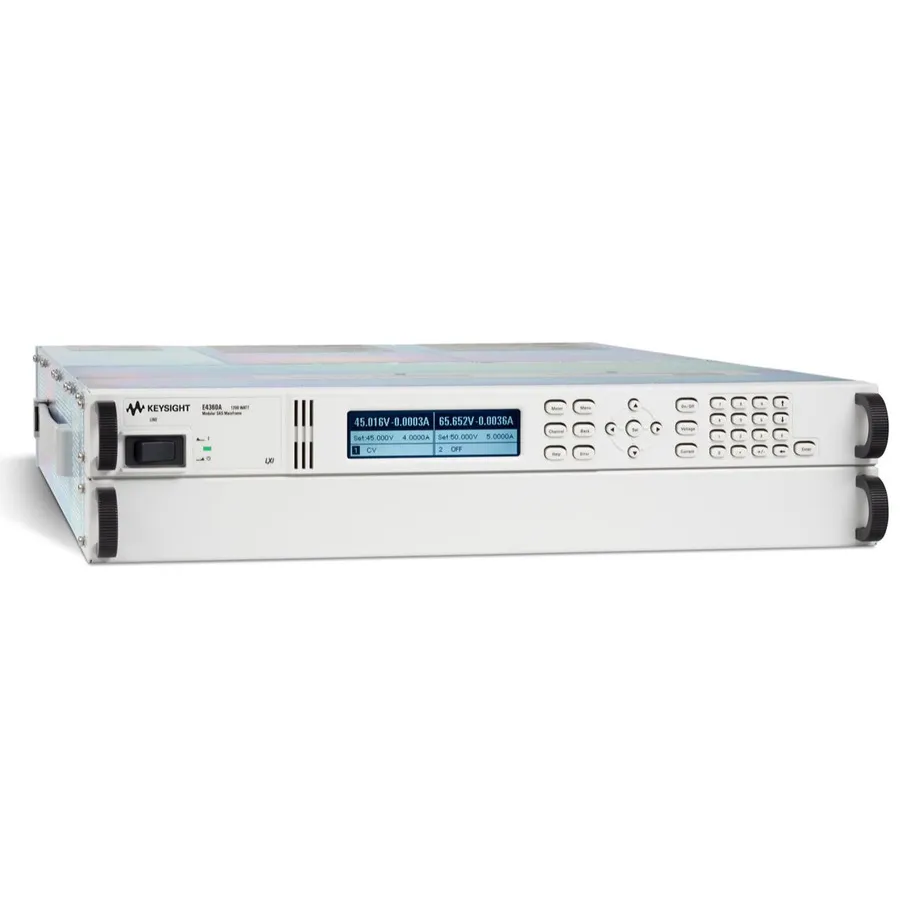

Keysight E4368A Solar Array Simulator
Request a quote
Keysight E4368A dual-output solar array simulator with two 600W modules, up to 1200W total power, ±0.075% accuracy, and GPIB/LAN/USB interfaces.
Product details
| Model | E4368A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E4368A is a dual-output solar array simulator mainframe preconfigured with two high-voltage E4362A modules. It provides up to 1200W total output power (at 200-240 VAC input) and is specifically designed for accurate simulation of solar array behavior under various environmental conditions. The instrument is ideal for satellite power system testing and residential photovoltaic development.
Key Features
- Dual output with up to 1200W total power (200-240 VAC) or 600W (100-120 VAC)
- Two E4362A modules: 600W each, 0-120V, 0-5A output ratings
- Voltage accuracy of ±0.075% + 20mV in fixed mode
- Low ripple: 24mV RMS, 195mV p-p in simulator mode
- Fast inhibit response: 5µs from receipt to shutdown
- Standard interfaces: GPIB, LAN, USB with SCPI support
- Compact 2U rack height, space-efficient design
- Web-based remote monitoring and multi-application access
Applications
- Satellite power system testing and development
- Residential photovoltaic (PV) system testing
- High-voltage solar array characterization
- Eclipse and spin simulation testing
Included Accessories
- E4360A mainframe
- Two E4362A modules
- 14360A System Control Tool software
Specifications
| Power Rating | 1200 W |
| Input Voltage | 100-240 VAC |
| Type | Mainframe |
| Rack Space | 2U |
| Series | E4360 Series |
| Interface | GPIB, LAN, LXI, USB |
| Number of Outputs | 2 |
| Programmable | Yes |
