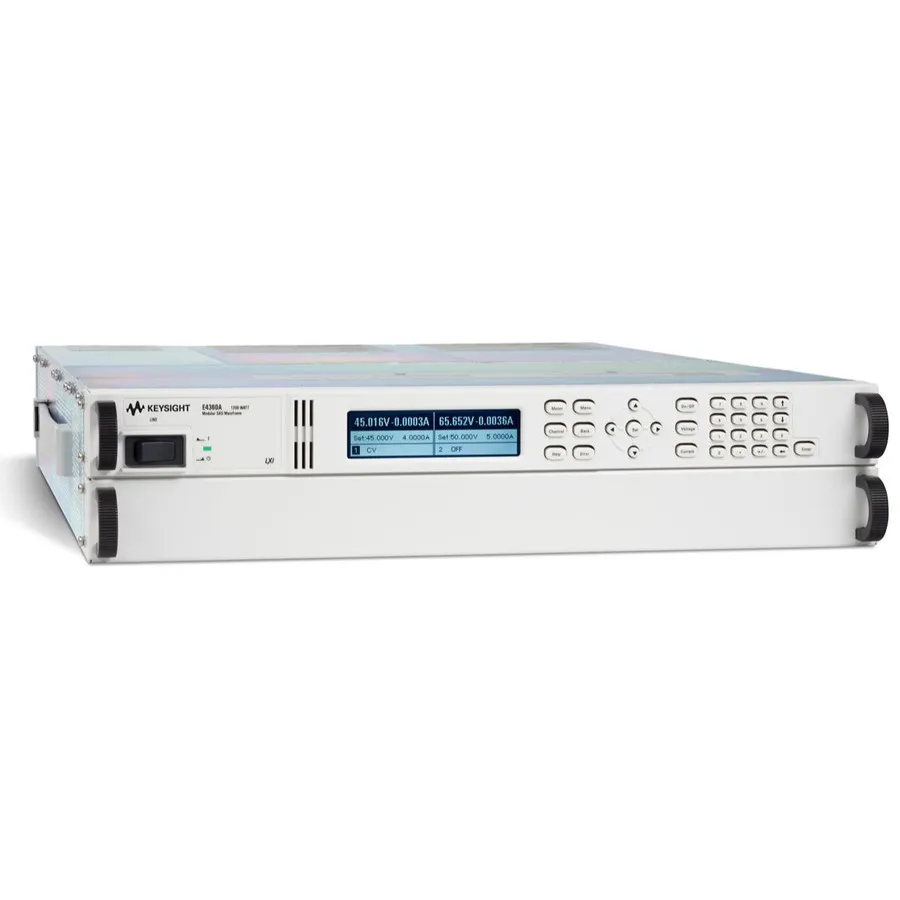

Keysight E4367A Solar Array Simulator
Request a quote
Keysight E4367A dual-output solar array simulator with two 510W modules, up to 1200W total power, ±0.075% accuracy, and GPIB/LAN/USB interfaces.
Product details
| Model | E4367A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E4367A is a dual-output solar array simulator mainframe preconfigured with two low-voltage E4361A modules. It provides up to 1200W total output power (at 200-240 VAC input) and is specifically designed for accurate simulation of solar array behavior under various environmental conditions. The instrument is ideal for satellite power system testing and residential photovoltaic development.
Key Features
- Dual output with up to 1200W total power (200-240 VAC) or 600W (100-120 VAC)
- Two E4361A modules: 510W each, 0-60V, 0-8.5A output ratings
- Voltage accuracy of ±0.075% + 25mV in fixed mode
- Low ripple: 20mV RMS, 125mV p-p in simulator mode
- Fast inhibit response: 5µs from receipt to shutdown
- Standard interfaces: GPIB, LAN, USB with SCPI support
- Compact 2U rack height, space-efficient design
- Web-based remote monitoring and multi-application access
Applications
- Satellite power system testing and development
- Residential photovoltaic (PV) system testing
- Solar array characterization under varying environmental conditions
- Eclipse and spin simulation testing
Included Accessories
- E4360A mainframe
- Two E4361A modules
- 14360A System Control Tool software
Specifications
| Power Rating | 1200 W |
| Input Voltage | 100-240 VAC |
| Type | Mainframe |
| Rack Space | 2U |
| Series | E4360 Series |
| Interface | GPIB, LAN, LXI, USB |
| Number of Outputs | 2 |
| Programmable | Yes |
