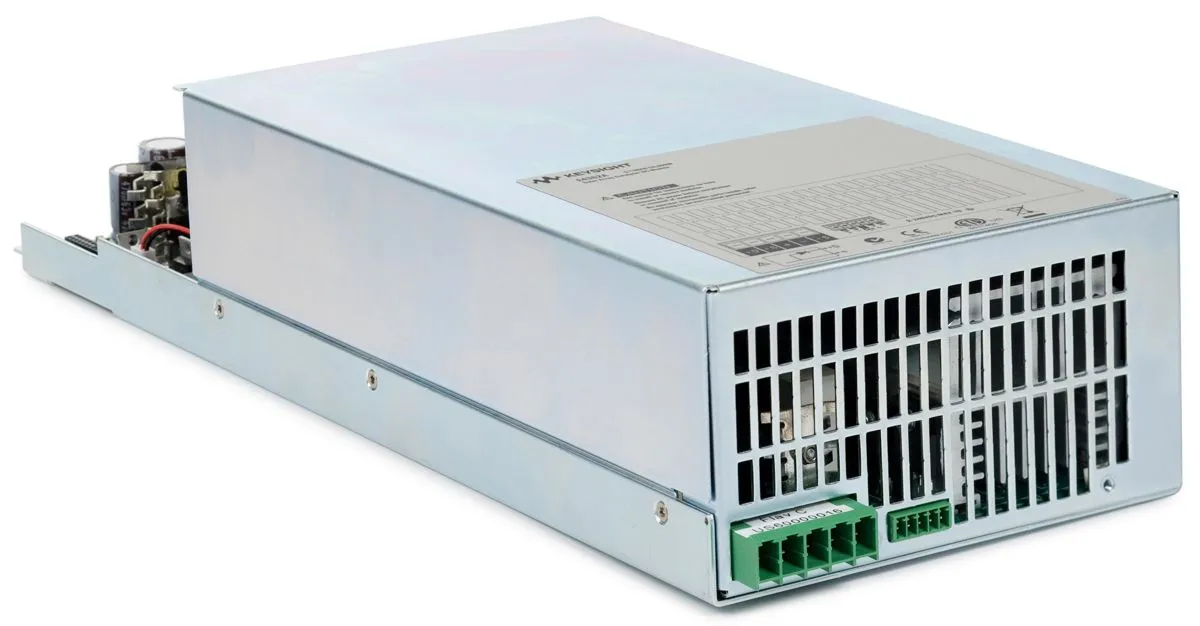

Keysight E4362A Solar Array Simulator Module
Request a quote
Keysight E4362A is a 600W solar array simulator DC module with auto-ranging capability and dual operational modes.
Product details
| Model | E4362A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E4362A is a 600W solar array simulator DC module that replicates the output characteristics of solar arrays with exceptional flexibility. Operating as a low-capacitance current source, it provides rapid I-V curve changes enabling accurate simulation of diverse solar arrays under various environmental conditions including temperature, age, eclipse, and spin.
Key Features
- Maximum power output: 600W
- Output voltage range: 0-130V with auto-ranging capability
- Output current range: 0-5A
- Dual operational modes: parameter-based and user-defined table mode
- Fast I-V curve adjustments for flexible simulation
- Standard interfaces: LAN, USB, GPIB
- Compatible with E4360A Modular SAS Mainframe
- Hardware trigger for rapid multi-output measurements (up to 100 outputs in under 500ms)
- Data logging capability at 10 readings per second for voltage and current
- Built-in overvoltage, overcurrent, and overtemperature protection
Applications
- Solar array testing and characterization
- Flexible simulation of solar panel behavior under diverse environmental conditions
- Space application power system validation
- Device Under Test characterization in solar power systems
Specifications
| Maximum Current | 5A |
| Maximum Power | 600W |
| Channel/Port Count | 1 |
| Power Rating | 600 W |
| Output Voltage | 130 V |
| Output Current | 5 A |
| Type | Module |
| Series | E4360 Series |
| Programmable | Yes |
