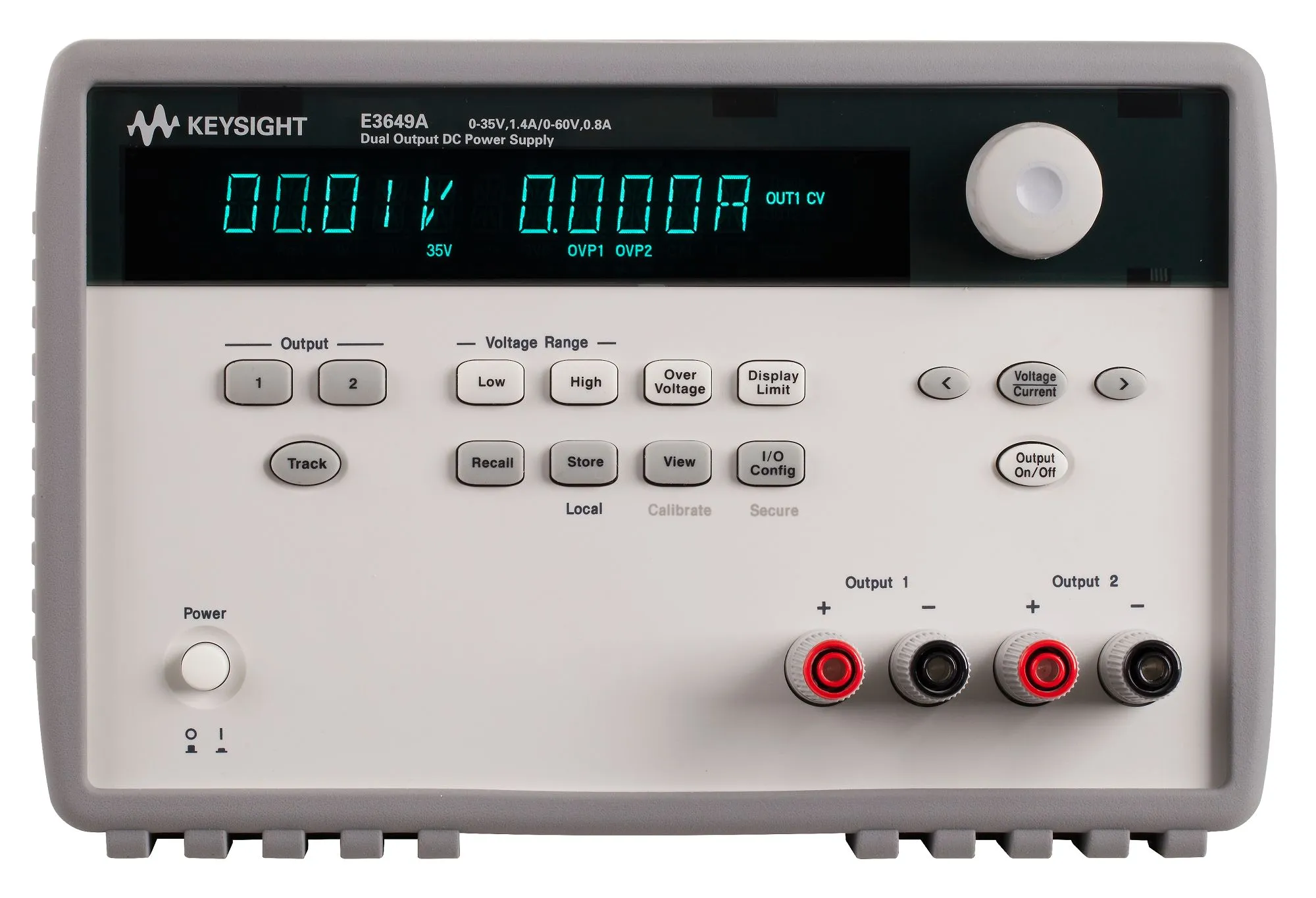

Keysight E3649A Dual Output DC Power Supply
Request a quote
Keysight E3649A is a 100W dual output DC power supply with extended voltage range (0-35V/1.4A or 0-60V/0.8A), low noise, and GPIB/RS232 automation.
Product details
| Model | E3649A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3649A is a 100W dual output bench power supply offering extended voltage and current ranges for demanding test applications. With switchable dual-range outputs (0-35V/1.4A or 0-60V/0.8A), it provides greater flexibility than other models in the E3640 series for applications requiring higher voltage or current capabilities.
Key Features
- 100W maximum power output
- Dual independent outputs with extended range flexibility
- Output range 1: 0-35V at 1.4A per channel
- Output range 2: 0-60V at 0.8A per channel
- Low output noise with ripple and noise less than 500 µVrms
- Stable output with load regulation less than 0.01%
- Meter accuracy better than 0.05%
- Store and recall up to five different operating states
- Connectivity options: RS232 and GPIB for test automation
Applications
- High-voltage test applications
- Automated test equipment (ATE) systems
- Component testing and validation
- Research and development laboratories
Specifications
| Maximum Voltage | 60V |
| Maximum Power | 100W |
| Channel/Port Count | 2 |
| Phases | 1 |
| Number of Outputs | Dual Output |
| Output Voltage | 35V x 2/60V x 2 |
| Output Current | 0.8A x 2/1.4A x 2 |
| Power Rating | 100 W |
| Input Voltage | 100/115 VAC |
| Interface | GPIB, RS-232 |
| Special Features | Remote Sense |
| Display | VFD |
| Series | E3640 Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
