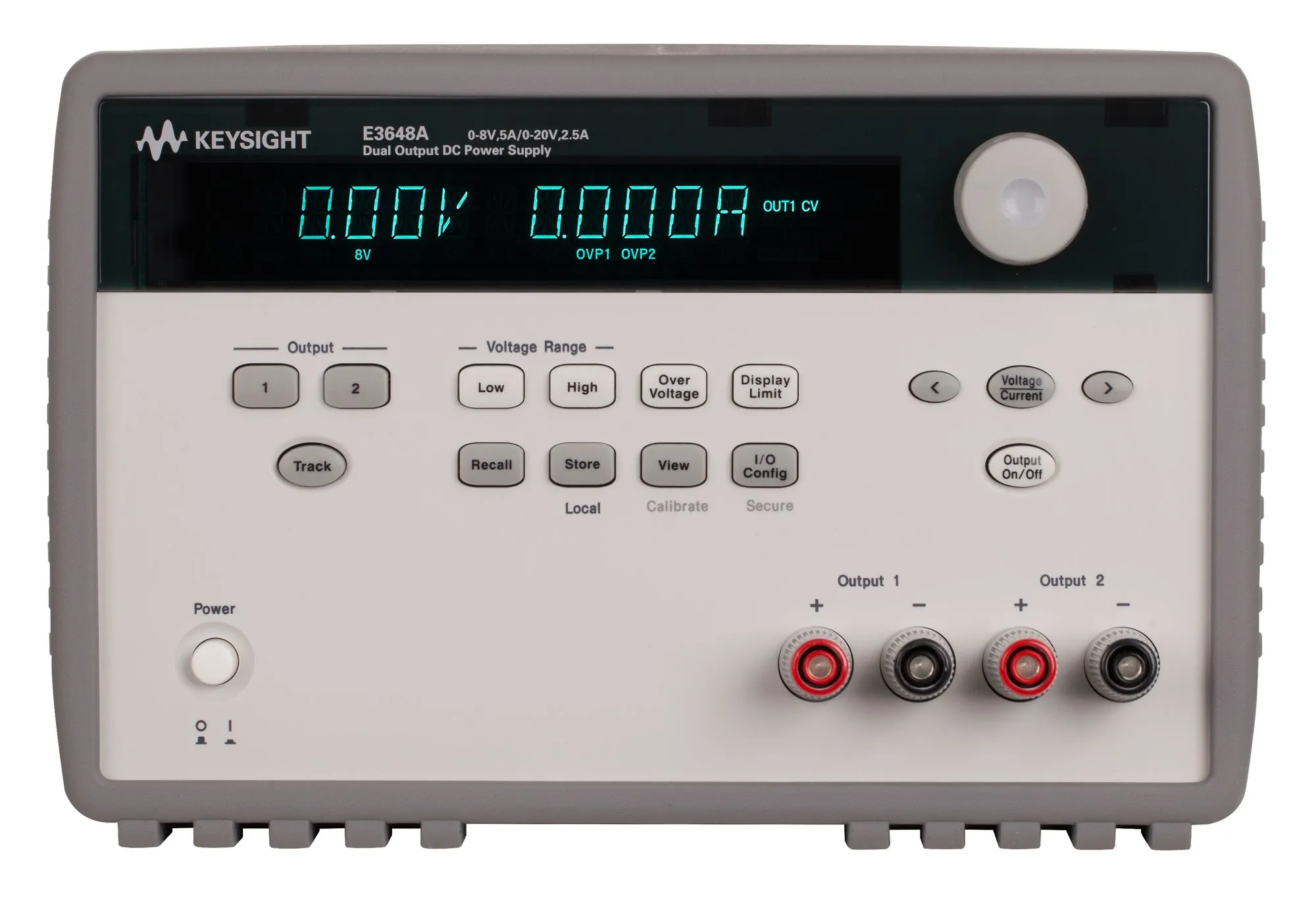

Keysight E3648A Dual Output DC Power Supply
Request a quote
Keysight E3648A is a 100W dual output DC power supply with dual-range flexibility, low noise (<500µVrms), and GPIB/RS232 connectivity.
Product details
| Model | E3648A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3648A is a 100W dual output bench power supply designed for automated test applications requiring higher power levels. It features dual-range flexibility with each output switchable between low voltage/high current (0-8V/5A) or high voltage/low current (0-20V/2.5A) modes, suitable for diverse laboratory and manufacturing test requirements.
Key Features
- 100W maximum power output
- Dual independent outputs with dual-range flexibility
- Low output noise with ripple and noise less than 500 µVrms
- Stable output with load regulation less than 0.01%
- Meter accuracy better than 0.05%
- Store and recall up to five different operating states
- Highly visible vacuum fluorescent display
- Connectivity options: RS232 and GPIB for test automation
Applications
- Automated test equipment (ATE) systems
- Component testing and validation
- Research and development laboratories
- Manufacturing and production testing
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 5A |
| Maximum Power | 100W |
| Channel/Port Count | 2 |
| Number of Outputs | Dual Output |
| Output Voltage | 8V x 2/20V x 2 |
| Output Current | 2.5A x 2/5A x 2 |
| Power Rating | 100 W |
| Input Voltage | 100/115 VAC |
| Interface | GPIB, RS-232 |
| Special Features | Remote Sense |
| Display | VFD |
| Series | E3640 Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
