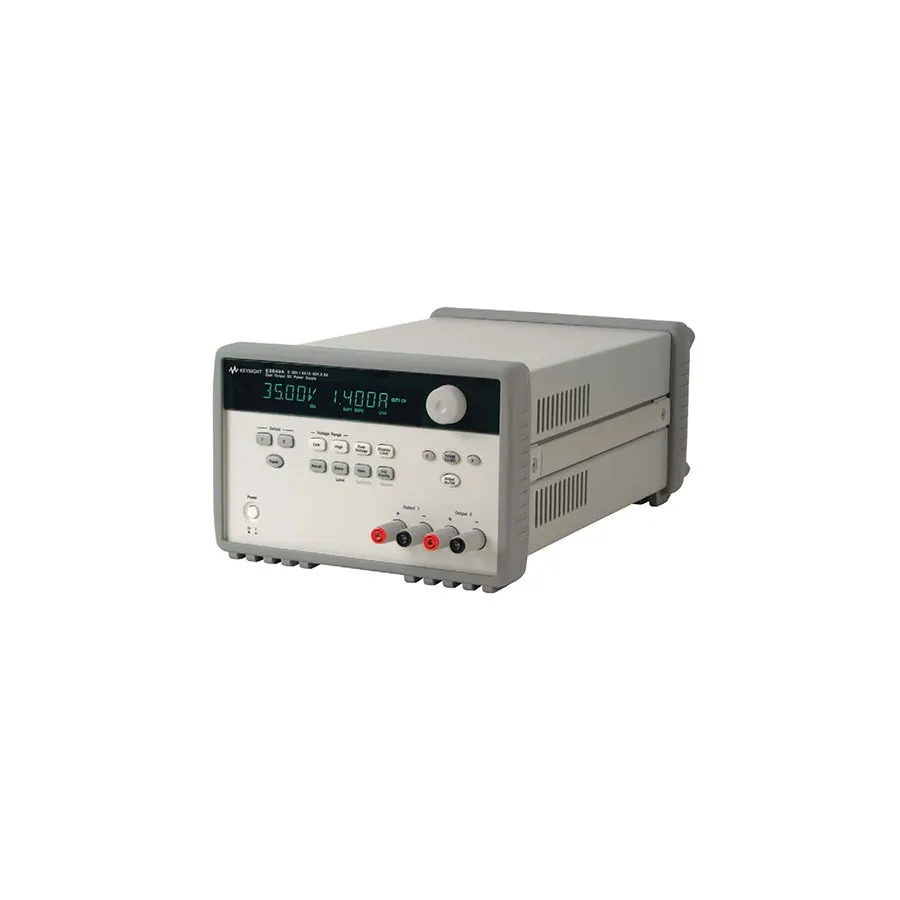

Keysight E3647A Dual Output DC Power Supply
Request a quote
Keysight E3647A is a 60W dual output DC power supply with dual-range flexibility, low noise (<500µVrms), and GPIB/RS232 connectivity.
Product details
| Model | E3647A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3647A is a 60W dual output bench power supply designed for automated test applications. It features dual-range flexibility with each output switchable between low voltage/high current (0-35V/0.8A) or high voltage/low current (0-60V/0.5A) modes, making it suitable for a wide range of laboratory and manufacturing test requirements.
Key Features
- 60W maximum power output
- Dual independent outputs with dual-range flexibility
- Low output noise with ripple and noise less than 500 µVrms
- Stable output with load regulation less than 0.01%
- Meter accuracy better than 0.05%
- Store and recall up to five different operating states
- Highly visible vacuum fluorescent display
- Connectivity options: RS232 and GPIB for test automation
Applications
- Automated test equipment (ATE) systems
- Component testing and validation
- Research and development laboratories
- Manufacturing and production testing
Specifications
| Number of Outputs | Dual Output |
| Output Voltage | 35V x 2/60V x 2 |
| Output Current | 0.8A x 2/0.5A x 2 |
| Power Rating | 60 W |
| Input Voltage | 100/115 VAC |
| Interface | GPIB, RS-232 |
| Special Features | Remote Sense |
| Display | VFD |
| Series | E3640 Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
