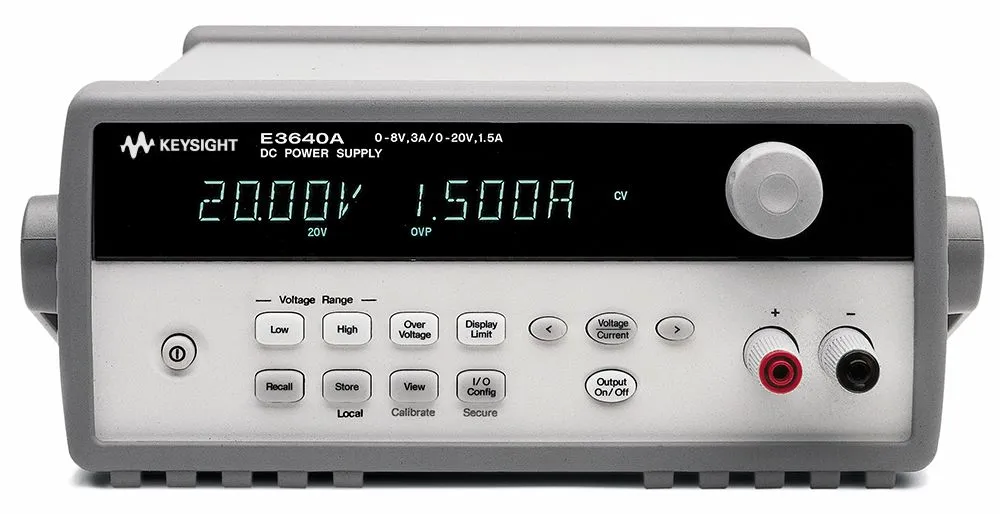

Keysight E3640A Bench Power Supply
Request a quote
Keysight E3640A benchtop DC power supply with 30W output, dual-range flexibility (0-8V/3A or 0-20V/1.5A), low noise <500µVrms, and remote control via GPIB/RS232.
Product details
| Model | E3640A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3640A is a 30W benchtop DC power supply designed for laboratory and production testing applications. It features dual-range output flexibility, allowing selection between low-voltage high-current mode (0-8V/3A) or high-voltage low-current mode (0-20V/1.5A). The instrument provides low noise output, precise regulation, and intuitive control via a vacuum fluorescent display.
Key Features
- 30W maximum power output
- Dual-range outputs: 0-8V/3A or 0-20V/1.5A
- Ultra-low ripple and noise: less than 500 µVrms
- Superior load regulation: less than 0.01%
- Meter accuracy better than 0.05%
- Store and recall up to five operating states
- Remote control via RS232 and GPIB interfaces
- Vacuum fluorescent display for clear visibility
Applications
- Component and circuit characterization testing
- Production line testing and burn-in applications
- Automated test equipment via GPIB interface
- Educational laboratory demonstrations
Specifications
| Maximum Voltage | 8V |
| Maximum Current | 3A |
| Maximum Power | 30W |
| Channel/Port Count | 1 |
| Voltage Range Selector | 20-29.9 |
| Output Voltage | 20 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 3 A |
| Power Range Selector | 1-199 |
| Power Rating | 30 W |
| Mounting Type | Bench Top |
| Input Voltage | 115 VAC |
| Series | E3640 Series |
| Display | VFD |
| Interface | GPIB,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Remote Sense |
