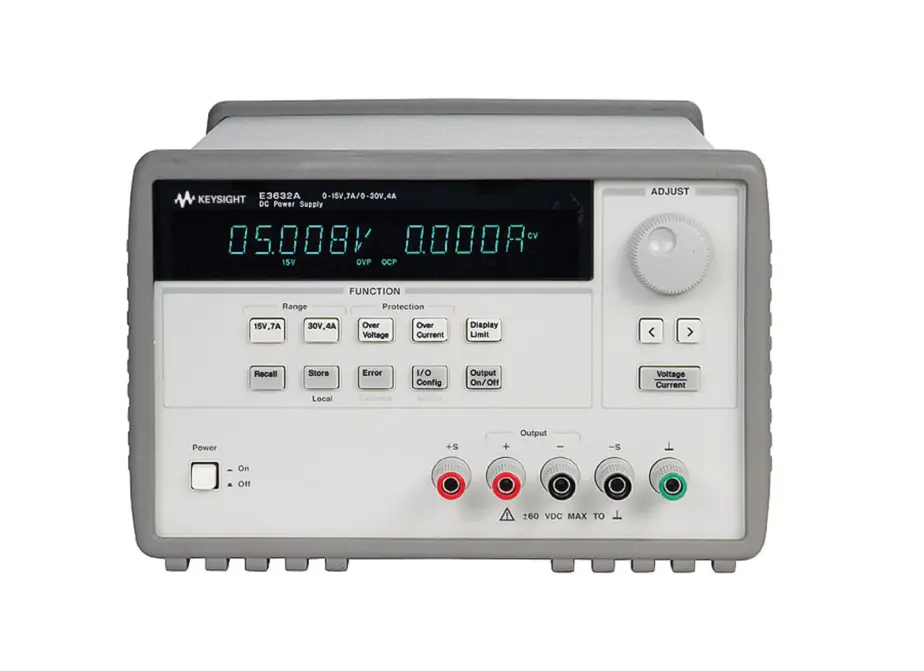

Keysight E3632A 120W DC Power Supply
Request a quote
Keysight E3632A is a 120W dual-range DC power supply with 15V/7A or 30V/4A outputs, four-wire remote sense, and GPIB/RS-232 control interfaces.
Product details
| Model | E3632A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3632A is a 120W single-output DC power supply with dual-range capability, designed for demanding R&D and production testing applications. The dual-range output provides flexibility by offering high and low voltage options, with the low voltage range delivering higher current capacity.
Key Features
- Dual-range single output: 15V/7A or 30V/4A
- 120W power capacity
- Low output ripple and noise (350 µVrms or less)
- Four-wire remote sense for accurate load voltage regulation
- Programming accuracy: 0.05% + 10 mV (voltage)
- Save and recall functions for settings
- Built-in GPIB and RS-232 remote interfaces
- Overvoltage and overcurrent protection
- Small, compact benchtop design
Applications
- R&D design verification with flexible voltage requirements
- Production testing and system validation
- QA verification with automated test sequences
- Laboratory benchtop applications
Specifications
| Maximum Voltage | 30V |
| Maximum Current | 4A |
| Maximum Power | 120W |
| Channel/Port Count | 1 |
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 5-9.9 |
| Output Current | 7 A |
| Power Range Selector | 1-199 |
| Power Rating | 120 W |
| Mounting Type | Bench Top |
| Input Voltage | 115 VAC |
| Series | E363xA Series |
| Interface | GPIB,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
