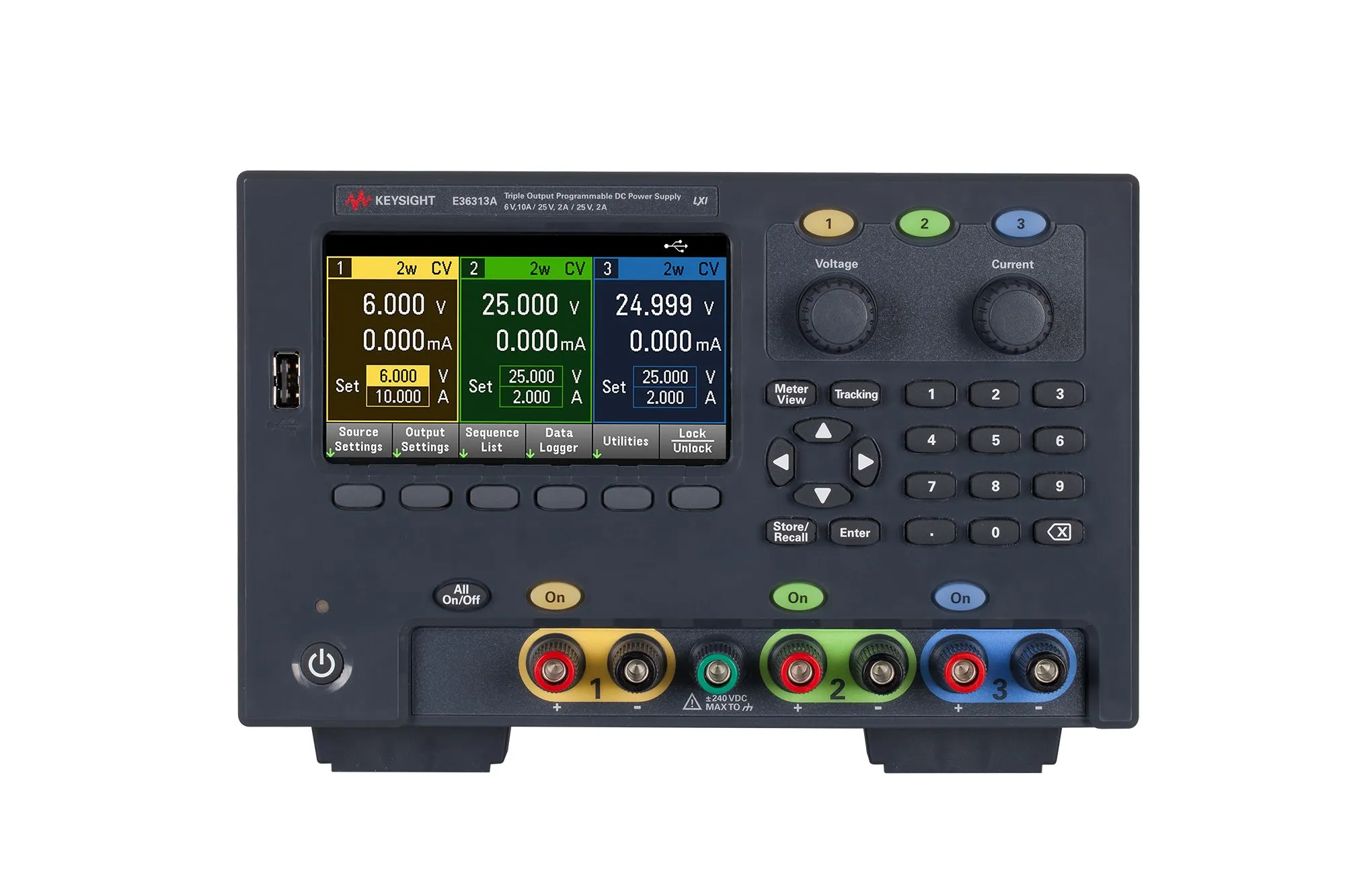

Keysight E36313A Triple Output DC Power Supply

Overview

Keysight E36313A is a high current 160-watt triple output bench power supply with three fully independent channels and advanced characterization capabilities. Designed for power-intensive testing, it provides increased current capacity up to 10 amps on the main output, making it suitable for demanding circuit validation and complex testing scenarios.

Key Features

• Three fully independent outputs: 6V/10A, 25V/2A each, totaling 160 watts
• 0.01% excellent line and load regulation with 2 and 4-wire remote sensing
• Low output ripple and noise with over voltage, over current, and over temperature protection
• 4.3-inch LCD color display with separate channel views
• Data logging with time-stamped CSV export and PNG/BMP file format support
• Output sequencing for automated multi-step power testing
• List mode for programmable test sequences
• Low current range measurement for precision at low currents
• Auto series/parallel mode for voltage or current boosting up to 50V or 4A
• LAN (LXI), USB, and optional GPIB interfaces for remote control
• Front and rear output terminals with electrically isolated channels

Applications

• High power circuit characterization and validation
• Power-intensive device testing with elevated current requirements
• Automated power supply testing with data logging and sequencing
• Multi-supply device testing with independent channel control
• Research and development of power conversion systems
• Compliance testing and documentation with data export

Included Accessories

• Connector Kit (P/N: E36312-89001) with three terminal block connectors
• AC power cord (regional variant)
