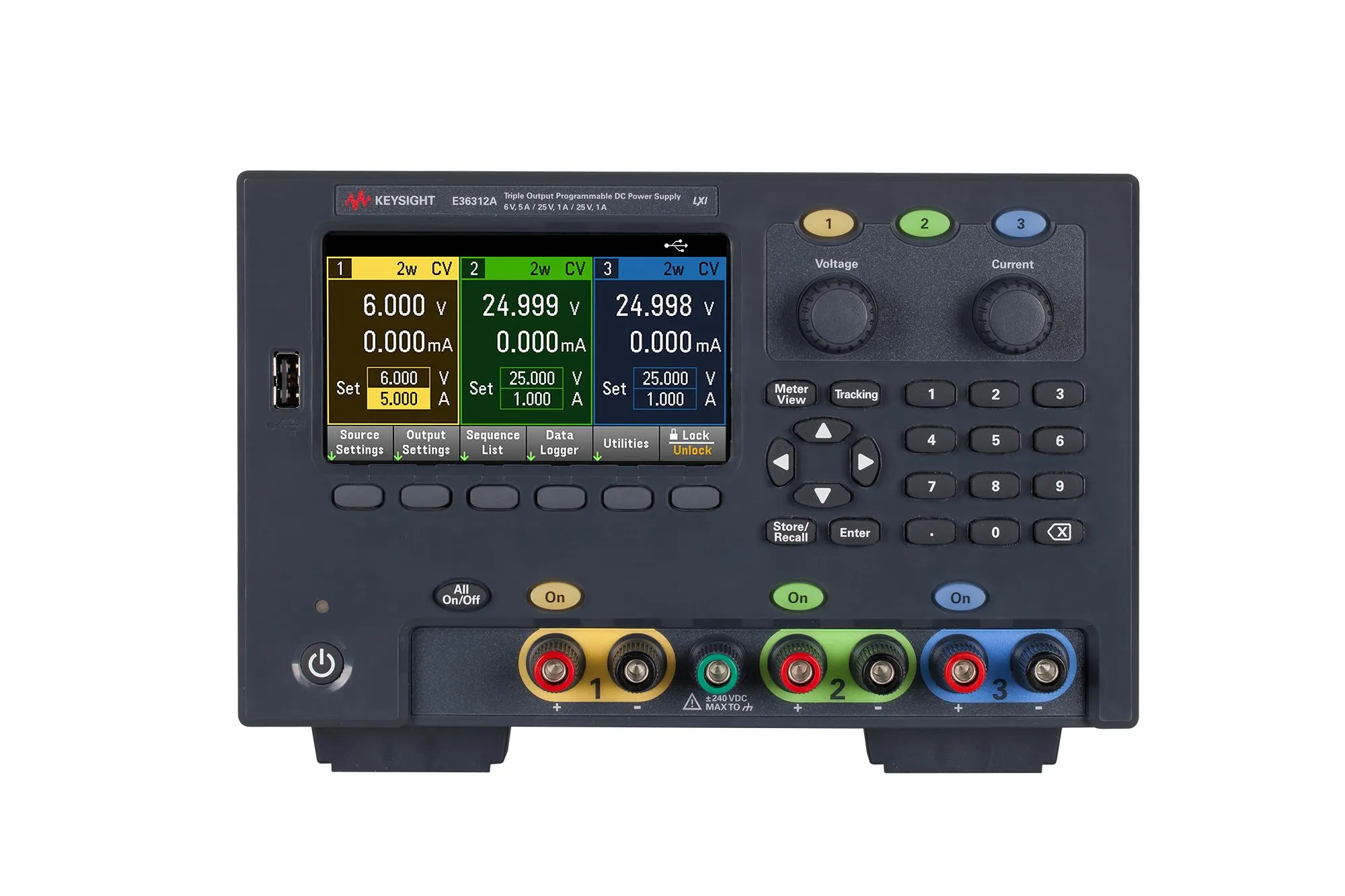

Keysight E36312A Triple Output DC Power Supply

Overview

Keysight E36312A is a full-featured 80-watt triple output bench power supply with three fully independent channels and advanced characterization capabilities. Designed for complex testing scenarios, it combines precise power delivery with data logging, output sequencing, and list mode for automated testing workflows.

Key Features

• Three fully independent outputs: 6V/5A, 25V/1A each, totaling 80 watts
• 0.01% excellent line and load regulation with 2 and 4-wire remote sensing
• Low output ripple and noise with over voltage, over current, and over temperature protection
• 4.3-inch LCD color display with separate channel views
• Data logging with time-stamped CSV export and PNG/BMP file format support
• Output sequencing for automated multi-step power testing
• List mode for programmable test sequences
• Auto series/parallel mode for voltage or current boosting up to 50V or 2A
• LAN (LXI), USB, and optional GPIB interfaces for remote control
• Front and rear output terminals with electrically isolated channels

Applications

• Complex circuit characterization and validation
• Automated power supply testing with data logging
• Multi-supply device testing with independent channel control
• Research and development applications requiring precise measurements
• Regulatory testing and compliance documentation

Included Accessories

• Connector Kit (P/N: E36312-89001) with three terminal block connectors
• AC power cord (regional variant)
