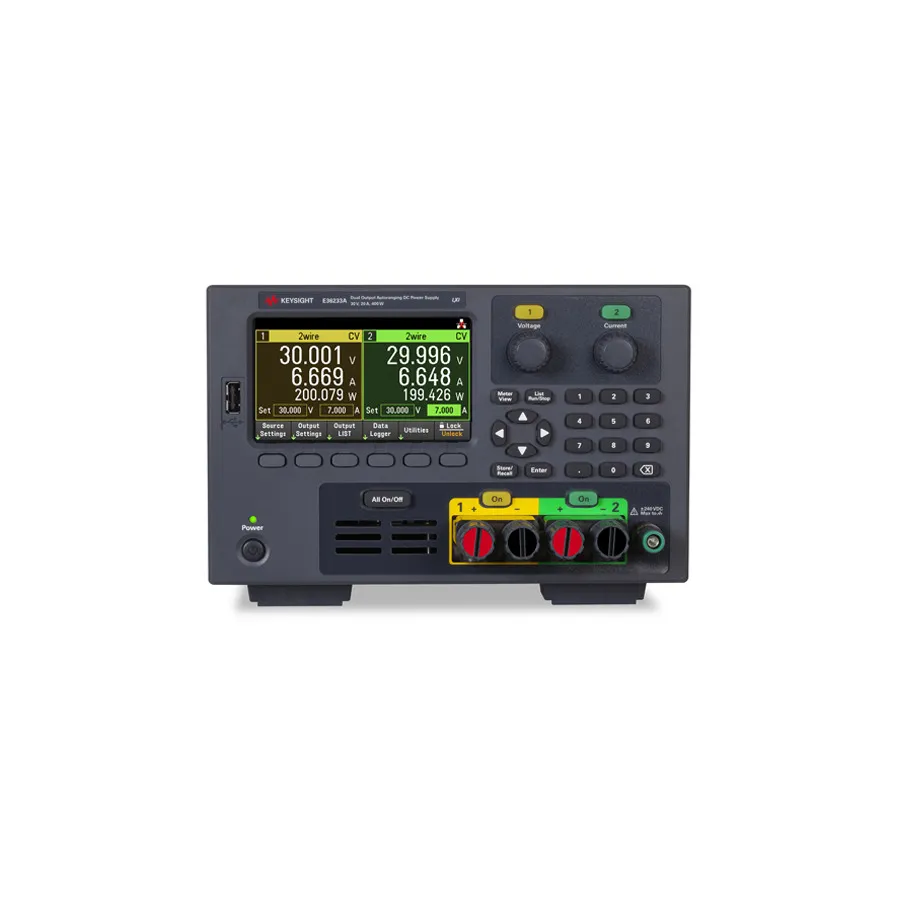

Keysight E36233A DC Power Supply
Request a quote
Dual-output programmable DC power supply with 2 × (0–30V, 0–20A) independent channels for 400W max total, featuring 350 µVrms ripple, 0.03% accuracy, and flexible autoranging with 4-wire sensing.
Product details
| Model | E36233A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36233A is a dual-output programmable DC power supply from the E36200 series, featuring two independent 200W channels with flexible autoranging. It delivers clean, stable power suitable for powering complex test setups, multiple circuit stages, or redundant system testing with integrated measurement and logging capabilities.
Key Features
- Dual independent outputs: each channel 0–30V, 0–20A (200W per channel, 400W max total)
- Autoranging technology provides maximum available current at any output voltage
- Auto-parallel mode doubles output current to 40A; auto-series doubles voltage
- Exceptionally clean power: 350 µVrms ripple and noise on all outputs
- Precision control: 0.03% voltage accuracy, 0.1% current accuracy on each channel
- Simultaneous voltage and current monitoring on both channels via color LCD
- Local 2-wire or remote 4-wire sensing for improved output regulation
- Low-range current measurement for resolution below 100 mA per channel
- Variable voltage slew rate and comprehensive protection (OV, OC, OT)
- Programmable via USB, LAN, and optional GPIB; SCPI, IVI, and BenchVue compatible
- Data logger and output list features for automated testing sequences
Applications
- Multi-stage circuit testing with independent power supplies
- Positive and negative rail power for symmetric circuits
- High-current DUT testing using auto-parallel connection
- Manufacturing test stands requiring dual-channel control
- Laboratory research with multiple independent power channels
Specifications
| Number of Outputs | Dual Output |
| Output Voltage | 30V x 2 |
| Output Current | 20A x 2 |
| Power Rating | 400 W |
| Input Voltage | 100-240 VAC |
| Interface | USB, LAN, SCPI |
| Special Features | Autoranging |
| Display | 4.3 LCD |
| Series | E36200 Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
