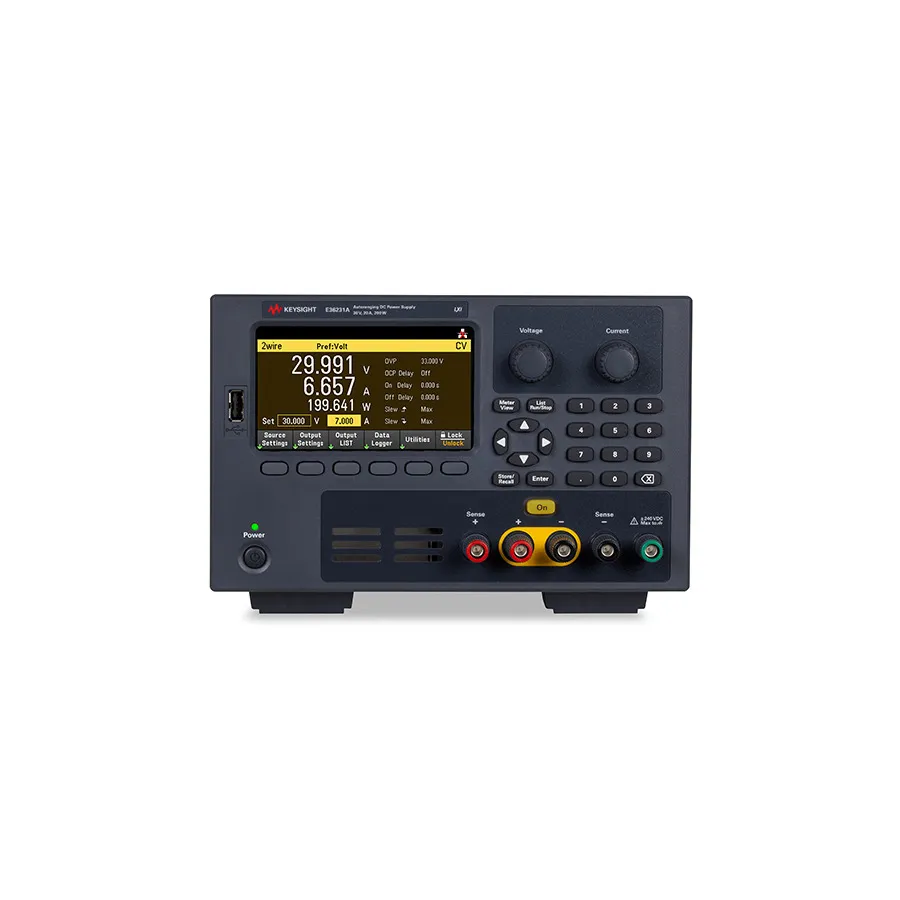

Keysight E36232A DC Power Supply
Request a quote
Single-output programmable DC power supply rated 0–60V, 0–10A (200W max) with 350 µVrms ripple, 0.03% voltage accuracy, and 4-wire remote sensing for precision laboratory and manufacturing testing.
Product details
| Model | E36232A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36232A is a single-output programmable DC power supply from the E36200 series, designed for precision power delivery in laboratory, manufacturing, and test environments. It combines flexible voltage and current settings with exceptionally clean power output and advanced remote measurement capabilities.
Key Features
- Single adjustable output: 0–60V, 0–10A (200W max)
- Autoranging technology maximizes current availability at any voltage
- Auto-parallel and auto-series modes to double current or voltage
- Extremely clean power output: 350 µVrms ripple and noise
- Precision voltage control with 0.03% accuracy and 0.1% current accuracy
- Dual sensing modes: local 2-wire or remote 4-wire for improved load regulation
- Low-range current measurement for enhanced resolution below 100 mA
- Variable voltage slew rate to suppress inrush current
- Comprehensive protection: over-voltage, over-current, and over-temperature
- Programmable via USB, LAN, and optional GPIB; supports SCPI, IVI, and BenchVue
- Built-in data logger and output list capabilities
Applications
- Device under test (DUT) power delivery and characterization
- Laboratory research requiring ultra-clean regulated power
- Manufacturing test and burn-in operations
- Power semiconductor and component validation
- Precision circuit development, debugging, and troubleshooting
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 10-19.9 |
| Output Current | 10 A |
| Power Range Selector | 200-499 |
| Power Rating | 200 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-240 VAC |
| Series | E36200 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Autoranging |
