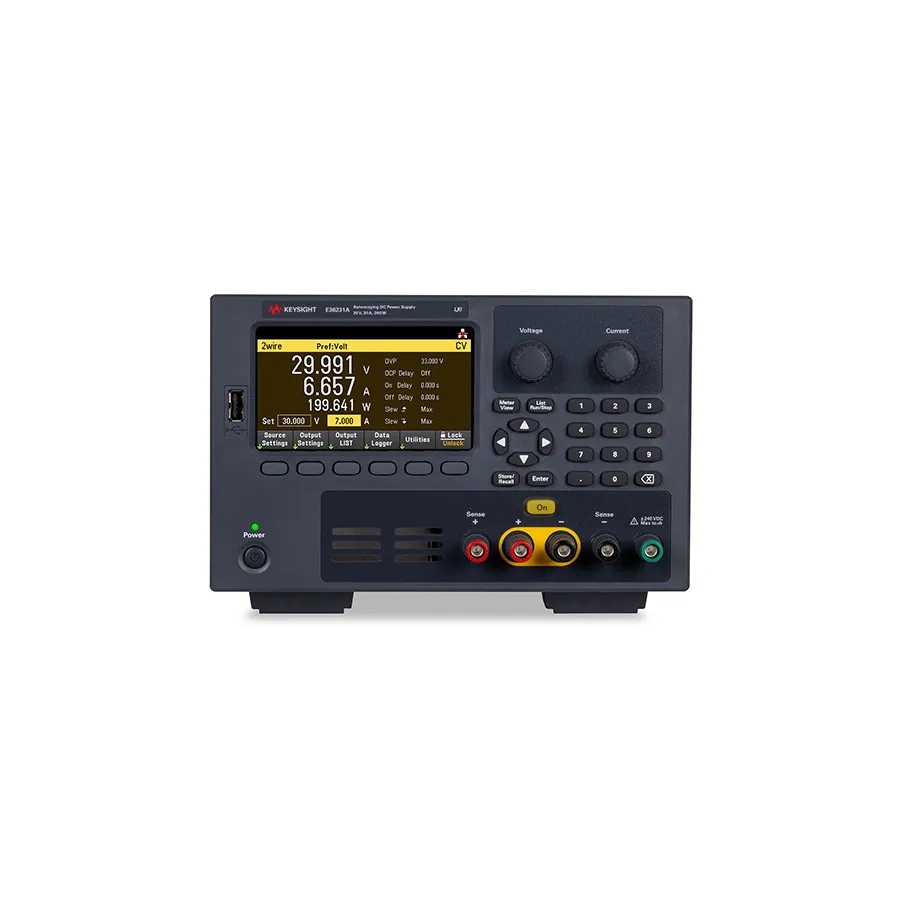

Keysight E36231A Single Output DC Power Supply

Overview

The Keysight E36231A is a 200W single-output DC power supply designed for demanding applications requiring clean, reliable power. Part of the E36200 series, it combines autoranging technology, precise measurement capabilities, and multiple connectivity options (USB, LAN) for both standalone and system integration use.

Key Features

• Single output: 0-30V, 0-20A (200W max)
• Autoranging technology for maximum current at any voltage setting
• Ultra-low ripple and noise: 350 µVrms
• High accuracy voltage setting (0.03%) and current setting (0.1%)
• Load and line regulation better than 0.01%
• Local 2-wire or remote 4-wire measurements
• Low range current measurement (less than 100 mA) for improved resolution
• Variable voltage slew rate to control inrush current
• Multiple protection: over-voltage, over-current, over-temperature
• Connectivity: USB, LAN, Digital I/O (optional GPIB available)
• 4.3-inch color LCD display with intuitive interface
• Rear output terminals and color-coded controls
• Data logger and output LIST capability

Applications

• Power-hungry device testing and development
• Precision bench testing and measurement
• System integration with automated test equipment
• Engineering prototyping and R&D
