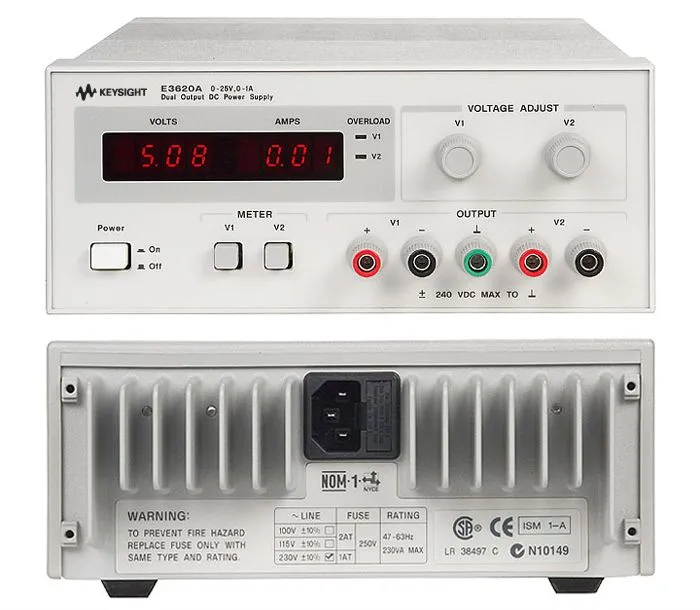

Keysight E3620A Dual Output DC Power Supply
Request a quote
Keysight E3620A is a 50W dual-output DC power supply with two independent 0-25V, 0-1A outputs, ideal for benchtop testing with excellent regulation and low noise.
Product details
| Model | E3620A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E3620A is a 50W dual-output DC power supply featuring two completely independent and isolated outputs. It provides reliable, clean power in a compact benchtop size, making it ideal for general purpose testing and development applications.
Key Features
- Dual independent outputs: 0-25V, 0-1A each (50W total max)
- Output isolation for independent operation
- Low ripple and noise: 350 µVrms, 1.5 mV peak-to-peak
- Load and line regulation: 0.01% + 2 mV
- Compact benchtop design
- Overload indicator to monitor output
- Meter resolution: Voltage 10 mV (0-20V) / 100 mV (>20V), Current 1 mA
Applications
- General purpose benchtop power applications
- Circuit testing and development with dual supply requirements
- Prototyping and R&D work
Specifications
| Maximum Voltage | 25V |
| Maximum Current | 1A |
| Maximum Power | 25W |
| Channel/Port Count | 2 |
