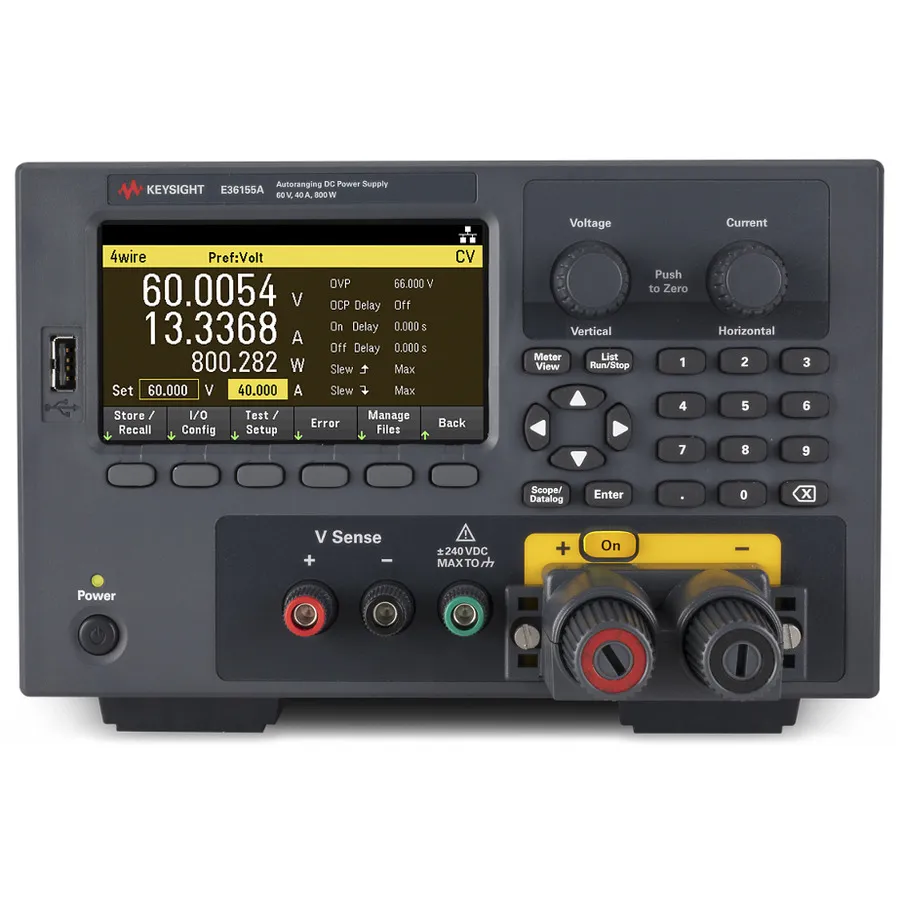

Keysight E36155A DC Power Supply
Request a quote
Keysight E36155A is a 60V/40A/800W autoranging DC power supply with low ripple output, 4-wire remote sensing, and optional ScopeView and waveform generation capabilities.
Product details
| Model | E36155A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36155A is an 800W autoranging benchtop DC power supply offering 60V/40A output with exceptional programming accuracy and low output noise. Designed for applications requiring higher voltage operation, the E36155A features the same proven E36150 Series architecture with detachable high-current front binding posts, 2-wire or 4-wire remote sensing, and data logging capabilities. Optional ScopeView and arbitrary waveform generation modules provide advanced characterization for dynamic power testing applications.
Key Features
- Autoranging design maximizes voltage-current combinations at 800W peak power
- Peak power handling up to 2400W for managing inrush currents and load transients
- 60V maximum voltage output for higher-voltage DUT applications
- 40A maximum current output
- Programming accuracy: 0.03% + 10 mV (voltage), 0.1% + 10 mA (current)
- Low output ripple and noise: <50 mV peak-to-peak, <5 mV RMS (normal mode)
- 4-wire remote sensing for voltage drop compensation on long test leads
- Detachable high-current binding posts (80A rated) with IEC61010 compliance
- Built-in data logging with USB host port and LAN/LXI connectivity
- Adjustable voltage slew rate to control inrush currents
- Output sequencing and synchronization with digital I/O triggers
- Low-range current measurement for monitoring micro-ampere level currents
- LIST mode programming for sequence-based testing
- 4.3-inch LCD display with individual voltage and current controls
- Optional ScopeView oscilloscope module (E36150ADVU)
- Optional arbitrary waveform generator (AWG) module
Applications
- High-voltage device characterization and validation
- Industrial equipment power supply testing
- Renewable energy system component validation
- Telecommunications power system testing
- Advanced research and development applications
- General-purpose laboratory power testing
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 30-49.9 |
| Output Current | 40 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
