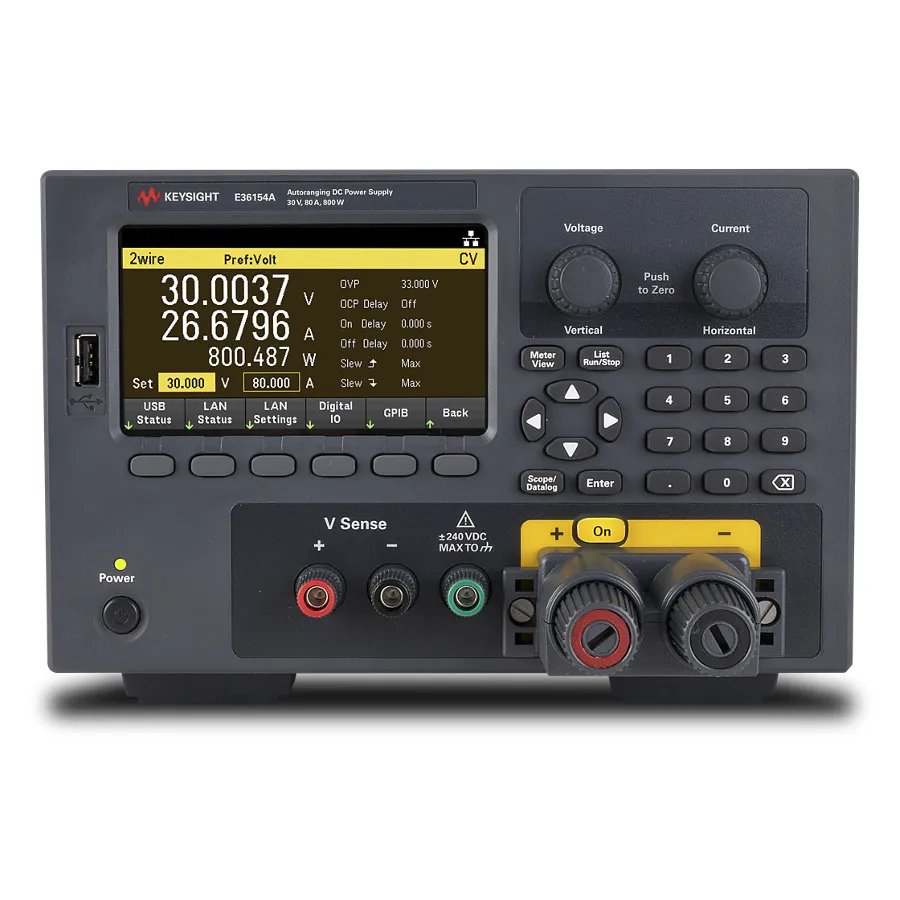

Keysight E36154A Autoranging DC Power Supply
Request a quote
Keysight E36154A is an 800W autoranging benchtop DC power supply with 30V/80A output, data logging, optional scope view, and arbitrary waveform generation.
Product details
| Model | E36154A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36154A is an 800W autoranging benchtop DC power supply featuring 30V/80A output capability. It combines high power handling capacity with advanced characterization tools including data logging, optional scope view, and arbitrary waveform generation, making it suitable for comprehensive power simulation and device testing applications.
Key Features
- Autoranging architecture: 30V at up to 80A, with peak power handling up to 3X rating (2400W)
- Low output ripple and noise with excellent line/load regulation
- Detachable high-current front binding post with built-in auto-protection
- 2-wire and 4-wire remote sense capabilities
- Over-voltage, over-current, and overtemperature protection
- 4.3-inch LCD color display with individual control knobs
- Data logging with built-in memory and USB host
- LIST mode programming and output sequencing
- Connectivity: LAN/LXI, USB, optional GPIB
- Optional scope view and arbitrary waveform generation (AWG)
Applications
- Automotive and energy systems testing
- IC and component characterization
- Aerospace and defense applications
- Consumer electronics device testing
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 50-99.9 |
| Output Current | 80 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
