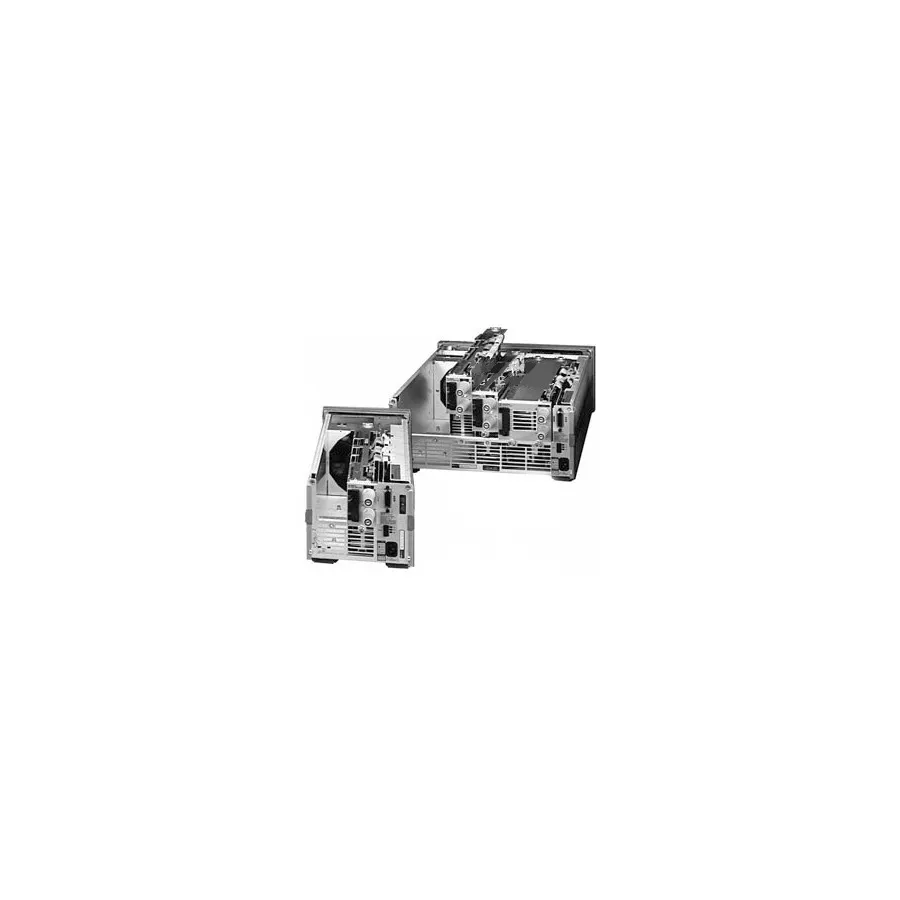

Keysight 60503B Electronic Load Module
Request a quote
Keysight 60503B 250W electronic load with 240V/10A capacity, GPIB control, pulse waveform generation, and protection.
Product details
| Model | 60503B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight 60503B is an electronic load module in the 60500B series, providing 250W of power handling at 240V and 10A. Designed for testing and evaluation of DC power sources and power components with comprehensive programmable control and protection features.
Key Features
- GPIB control of current, voltage, and resistance
- GPIB readback of current, voltage, and power
- Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle, and slew rate
- Full protection from over-current, over-voltage, over-power, over-temperature, and reverse polarity
- Electronic calibration for accuracy
- External trigger synchronization capability
- Parallel operation in constant current mode for increased power
- VXI plug&play drivers for system integration
Applications
- Testing DC power sources and supplies
- Power component evaluation and characterization
- Research and development of power systems
- Production testing and incoming inspection
Specifications
| Maximum Power | 250W |
| Maximum Current | 10A |
| Maximum Voltage | 240V |
| Maximum Power | 250 W |
| Maximum Voltage | 240 V |
| Maximum Current | 10 A |
| Series | 60500B Series |
