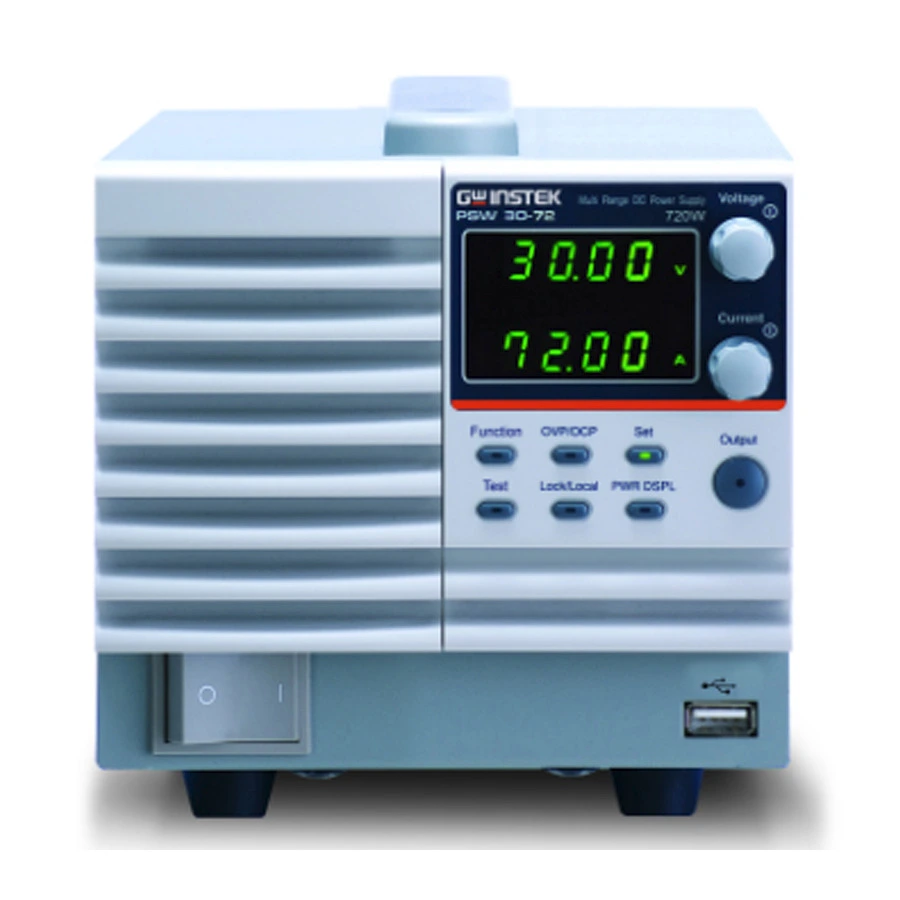

GW Instek PSW 30-72 DC Power Supply

Overview

The GW Instek PSW 30-72 is a single-output programmable switching DC power supply delivering up to 720W at 30V/72A. The PSW-Series features constant power output with multi-range voltage and current combinations, enabling flexible configuration within the rated power. This model can be connected in series (up to 2 units) or parallel (up to 3 units) for expanded voltage or current capabilities across diverse applications.

Designed for battery and LED industry applications, the PSW-Series includes CV/CC priority mode selection to protect devices under test from inrush current damage. Adjustable slew rate control enables smooth, controlled voltage and current transitions during power-on and power-off sequences, reducing surge currents that could damage sensitive components.

Key Features

• Multi-range output with selectable voltage levels (30V, 80V, 160V, 250V, 800V)
• CV/CC priority mode for DUT protection and precise LED I-V curve measurement
• Adjustable slew rate for controlled voltage and current rise and fall times
• Over-voltage protection (OVP) and over-current protection (OCP) at 110% of rated values
• Standard interfaces: USB Host/Device and Ethernet (LAN)
• Optional GPIB-USB adaptor and RS232-USB cable connectivity
• LabView driver and data logging software included
• Analog control and monitoring through rear panel connector
• 1/3-rack mount form factor (EIA/JIS standard)
• High efficiency and power density design

Applications

• Battery charging and characterization testing
• LED manufacturing and I-V curve verification
• Electronic device development and validation under controlled power
• High-current load testing and industrial testing applications

Included Accessories

• User manual (printed and CD)
• Power cord (region-dependent)
• GTL-240 USB cable (L-type)
• PSW-004 basic accessories kit including terminal hardware, air filter, and control lever
