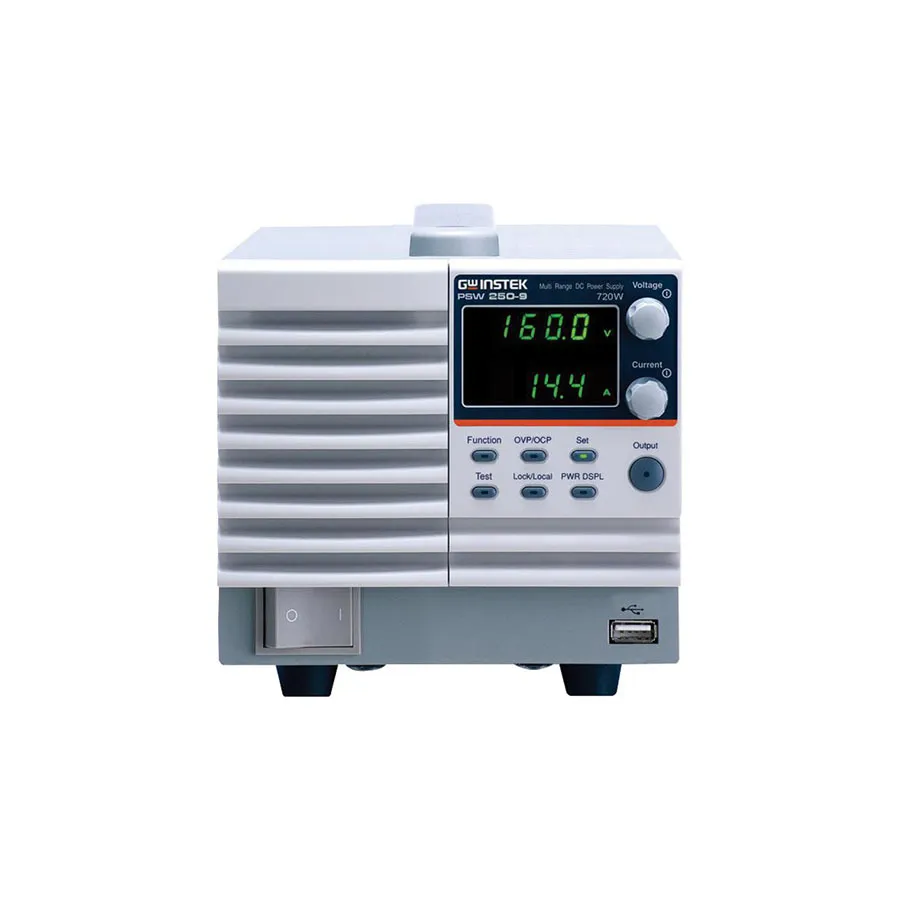

GW Instek PSW 250-9 Programmable Switching DC Power Supply

Overview

The GW Instek PSW 250-9 is a single-output, multi-range programmable switching DC power supply from the PSW-Series, designed for versatile test and measurement applications. With a maximum output of 250V, 9A, and 720W power capacity, it provides flexible voltage and current combinations within its rated power range. The unit features CV/CC priority selection specifically suited for battery and LED testing applications.

The supply supports series operation (up to 2 units) and parallel operation (up to 3 units), enabling users to achieve higher voltage or current outputs for complex testing scenarios. Its high efficiency and power density, combined with a 1/3 rack-mount form factor, make it suitable for both laboratory and production environments.

Key Features

• Rated Output: 250V, 9A, 720W maximum power
• Multi-range voltage and current combinations within rated power envelope
• CV/CC Priority mode for inrush current protection and device safety
• Adjustable slew rate for controlled voltage and current rise/fall times
• Overvoltage Protection (OVP) and Overcurrent Protection (OCP) at 110% default
• Series operation: up to 2 units for higher voltage
• Parallel operation: up to 3 units for higher current
• Standard interfaces: LAN, USB Host/Device, analog control connector
• Optional interfaces: GPIB-USB adapter, RS232-USB cable
• LabView driver and data logging software support
• Compact 1/3 rack mount design (EIA/JIS standard)

Applications

• Battery testing and characterization
• LED I-V curve verification and testing
• Capacitive load and current-intensive device testing
• Manufacturing test and quality assurance
• Device initialization and burn-in testing
• Power system simulation and verification
