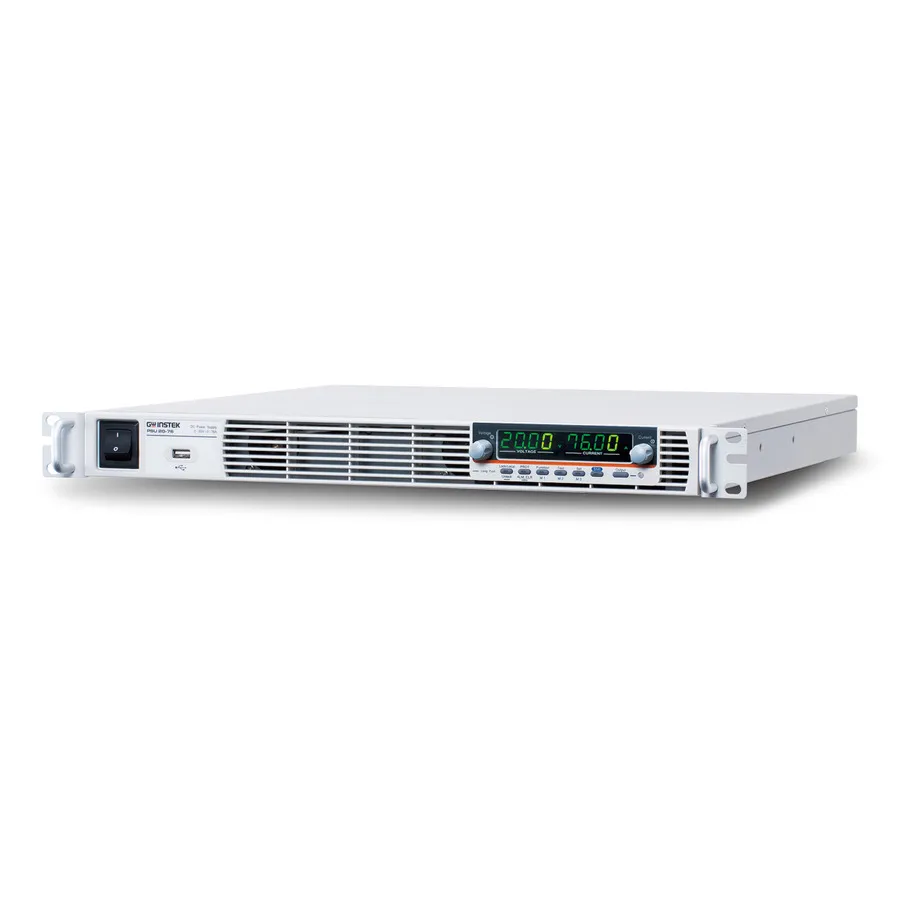

GW Instek PSU 80-19 Programmable DC Power Supply
Request a quote
GW Instek PSU 80-19 is a programmable switching DC power supply with 80V output, 19A current, and 1520W power rating for versatile test applications.
Product details
| Model | PSU 80-19 |
| Manufacturer | GW Instek |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PSU 80-19 is a programmable switching DC power supply designed for versatile test and measurement applications. With 1U height and 19-inch rack mount compatibility, it provides 80V output, 19A maximum current, and 1520W power rating. This power supply supports flexible series and parallel configurations to meet various test system requirements, making it ideal for electronic components testing, battery simulation, relay testing, and automotive electronics applications.
Key Features
- 80V output voltage with 19A maximum current
- 1520W power rating with high efficiency and high power density
- 1U height and 19-inch rack mount compatible
- CV/CC priority selectable with adjustable voltage/current rise and fall time
- Standard interfaces: USB, LAN, RS-232, RS-485, Analog Control
- Optional interfaces: GPIB, Isolated Analog Interface (Voltage Control/Current Control)
- Series/Parallel connection capability: Max 2 units in series (models under 300V) or 4 units in parallel
- Flexible High/Low Level or Trigger input/output signals with 1-60ms pulse width
- 2-Year Warranty
Applications
- Electronic components testing
- Micro resistor and relay testing
- Battery simulation at 12V, 24V, and 48V levels
- Automotive electronic device testing
- Versatile laboratory and manufacturing test systems
Included Accessories
- User Manual and Programming User Manual (CD)
- Output Terminal Cover
- Analog Connector Plug Kit
- Output Terminal M8 Bolt Set (6V to 60V model)
- Input Terminal Cover
- 1U Handle (RoHS)
- 1U Bracket Left (RoHS)
- 1U Bracket Right (RoHS)
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 80 V |
| Current Range Selector | 10-19.9 |
| Output Current | 19 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.52 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | PSU-Series |
| Display | LED |
| Interface | USB,LAN,RS-232,RS-485 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | OVP, OCP, OHP, UVL, AC Fail, FAN Fail |
