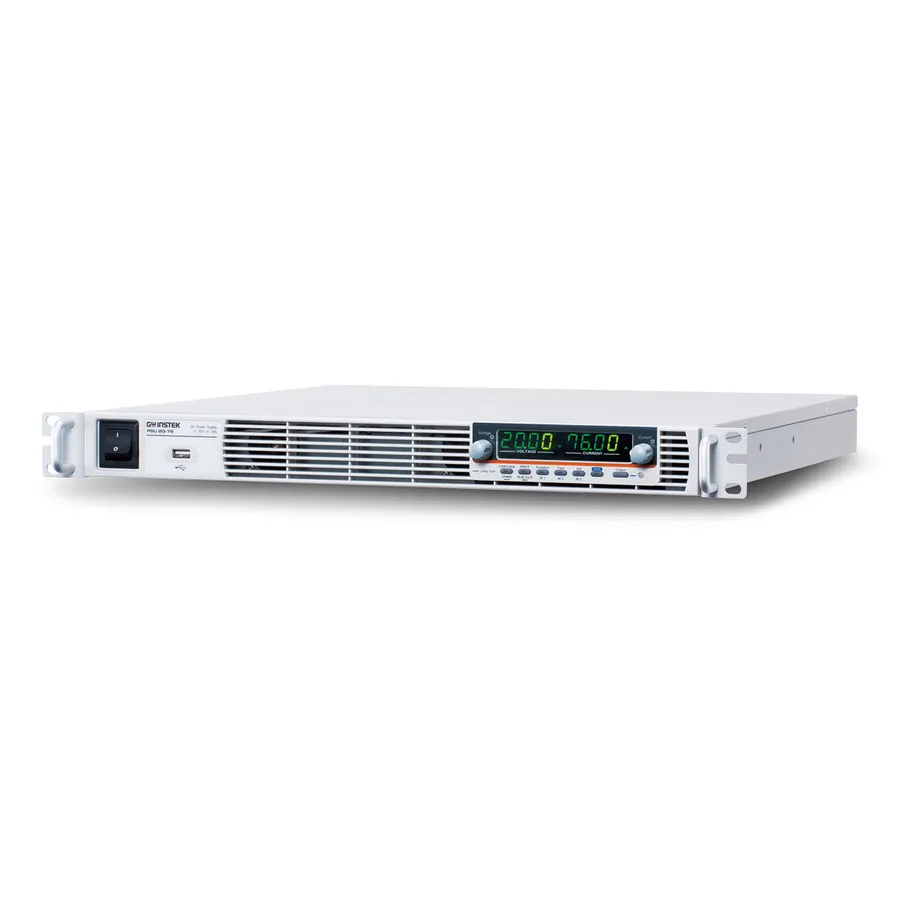

GW Instek PSU 300-5 High-Voltage DC Power Supply

Overview

The GW Instek PSU 300-5 is a programmable high-voltage switching DC power supply designed for demanding test applications requiring elevated voltage levels. With a 300V/5A output and 1.50kW power rating, it delivers stable, regulated power in a compact 1U form factor suitable for 19-inch rack mounting. The supply features flexible control modes and programmable voltage/current rise and fall times, making it ideal for advanced laboratory and manufacturing test environments.

Key Features

• Output: 300V DC at 5A (1.50kW)
• High-voltage capable design for elevated voltage testing
• CV/CC Priority mode for flexible control
• Adjustable voltage/current rise and fall time for slope control
• Series/parallel connection capability: up to 2 units in series or 4 units in parallel
• High efficiency and power density design
• 1U height, 19-inch rack mount compatible
• Standard interfaces: USB, LAN, RS-232, RS-485, Analog Control
• Optional interfaces: GPIB, isolated analog interface
• Programmable trigger input/output with 1-60ms pulse width
• 2-year warranty

Applications

• High-voltage component and circuit testing
• Insulation and breakdown testing
• Precision measurement equipment calibration
• Test system integration for advanced applications
• Laboratory research and development

Included Accessories

• User Manual and Programming User Manual (CD)
• Output Terminal Cover
• Analog Connector Plug Kit
• Input Terminal Cover
• 1U Handle (RoHS)
• 1U Bracket - Left (RoHS)
• 1U Bracket - Right (RoHS)
