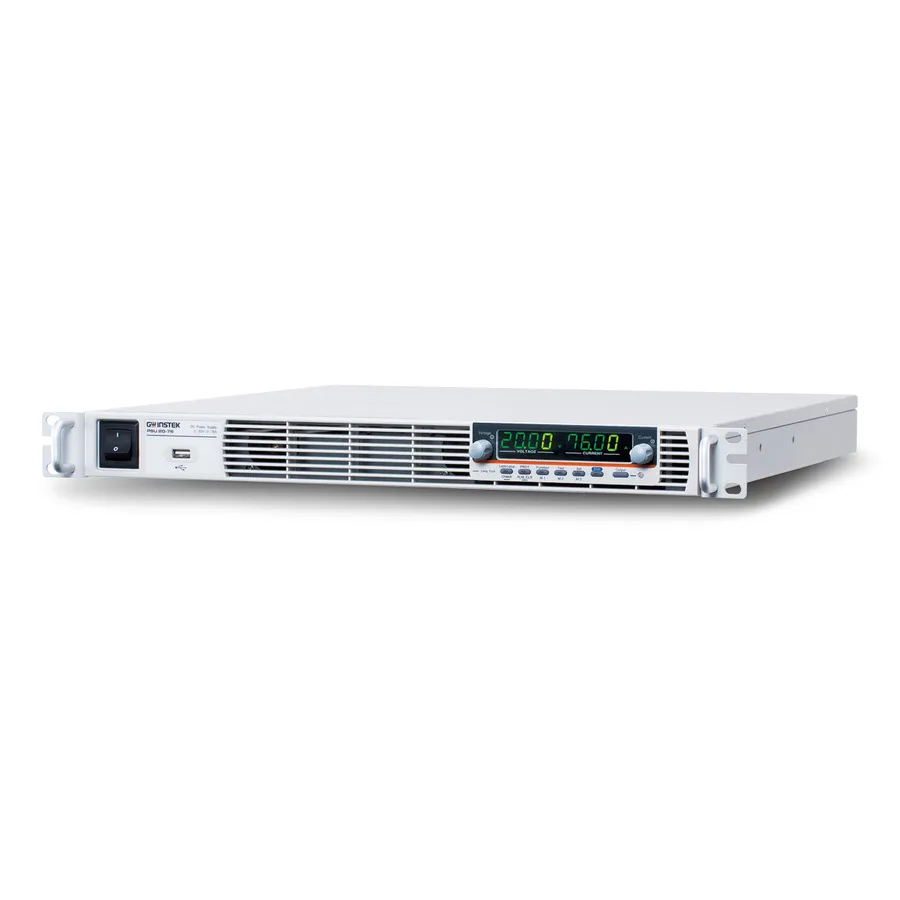

GW Instek PSU 20-76 DC Power Supply

Overview

The GW Instek PSU 20-76 is a programmable switching DC power supply designed for high-density test system installations. With a 20V/76A output and 1.52kW power rating, it delivers stable, regulated power in a compact 1U form factor suitable for 19-inch rack mounting. The supply features flexible control modes and programmable voltage/current rise and fall times, making it ideal for demanding laboratory and manufacturing environments.

Key Features

• Output: 20V DC at 76A (1.52kW)
• CV/CC Priority mode for flexible control
• Adjustable voltage/current rise and fall time for slope control
• Series/parallel connection capability: up to 2 units in series or 4 units in parallel
• High efficiency and power density design
• 1U height, 19-inch rack mount compatible
• Standard interfaces: USB, LAN, RS-232, RS-485, Analog Control
• Optional interfaces: GPIB, isolated analog interface
• Programmable trigger input/output with 1-60ms pulse width
• 2-year warranty

Applications

• Electronic component testing and verification
• Battery simulation (12V, 24V, 48V systems)
• Automotive electronics device testing
• Test system integration and laboratory testing
• Motor and load testing with adjustable ramp control

Included Accessories

• User Manual and Programming User Manual (CD)
• Quick Start Guide
• Output Terminal Cover
• Analog Connector Plug Kit
• Output Terminal M8 Bolt Set
• Input Terminal Cover
• 1U Handle (RoHS)
• 1U Bracket - Left (RoHS)
• 1U Bracket - Right (RoHS)
