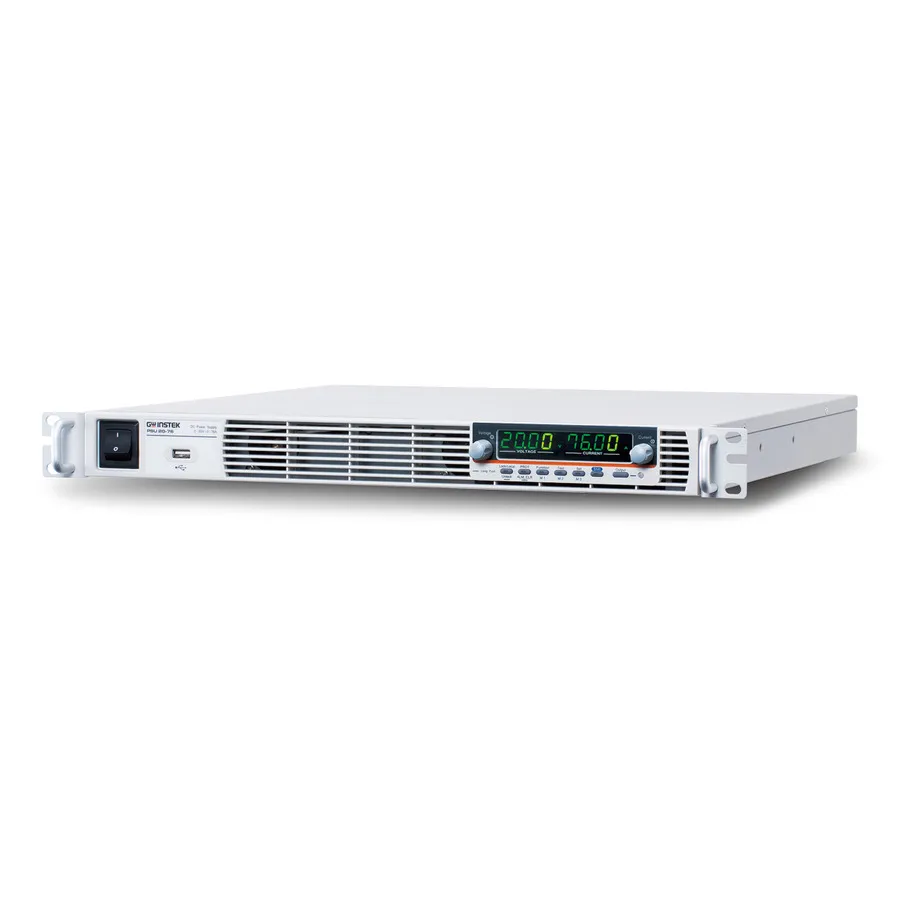

GW Instek PSU 12.5-120 Programmable DC Power Supply

Overview

The GW Instek PSU 12.5-120 is a programmable DC power supply with 12.5V/120A output and 1500W power rating. Designed for high-current applications and test system integration, the PSU 12.5-120 features high power density in a compact 1U form factor. It is suitable for electronic component testing, battery simulation, and automotive electronics applications.

Key Features

• Output: 12.5V, 120A, 1500W
• CV/CC Priority mode with adjustable voltage/current rise and fall time
• 1U height, 19-inch rack mount compatible
• Series/parallel connection capability (max 2 units under 300V, max 4 units parallel)
• Standard interfaces: USB, LAN, RS-232, RS-485, Analog Control
• Optional interfaces: GPIB, Isolated Analog Interface (Voltage/Current Control)
• Trigger input/output control with 1-60ms pulse width
• Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
• 2-year warranty

Applications

• Electronic component testing and device characterization
• 12V/24V/48V battery simulation for automotive and industrial testing
• Relay, resistor, and diode aging tests
• Semiconductor production and burn-in testing
• Automotive ECU and motor control testing

Included Accessories

• User Manual + Programming User Manual (CD)
• Quick Start Guide
• Output Terminal Cover
• Analog Connector Plug Kit
• Output Terminal M8 Bolt Set
• Input Terminal Cover
• 1U Handle (RoHS)
• 1U Bracket (Left, RoHS)
• 1U Bracket (Right, RoHS)
