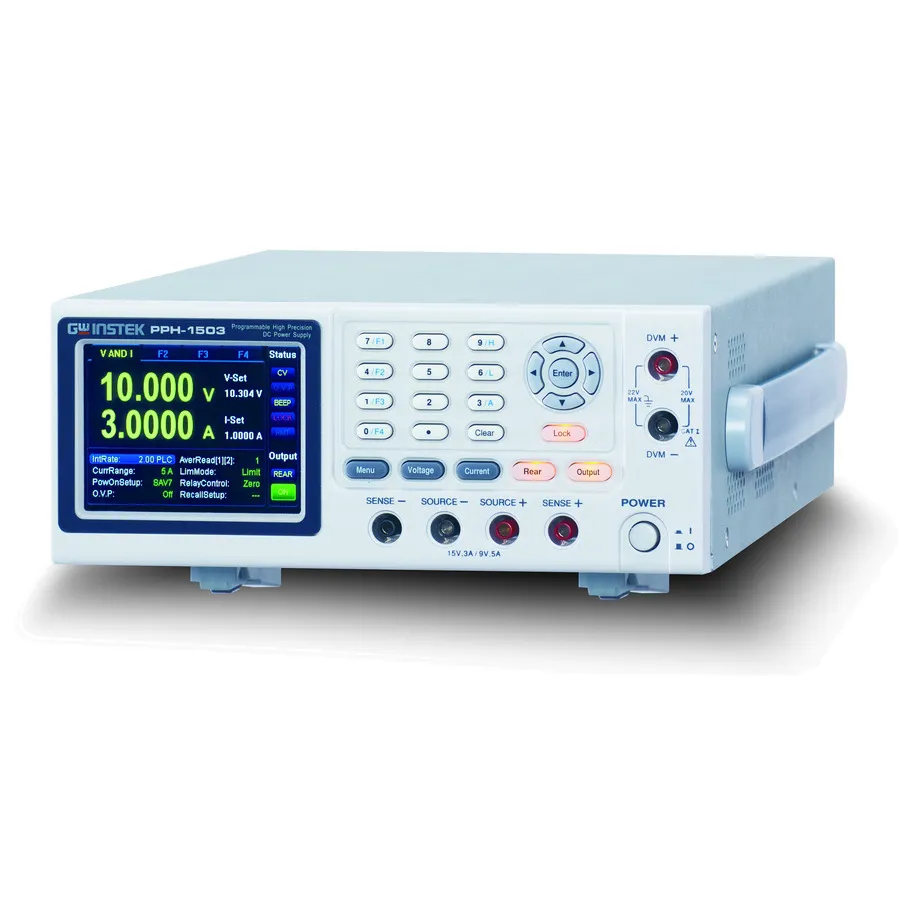

GW Instek PPH-1503 DC Power Supply
Request a quote
GW Instek PPH-1503 dual-range DC power supply with 15V/3A or 9V/5A, 45W power, 3.5-inch LCD display, built-in DVM, and CV/CC operation.
Product details
| Model | PPH-1503 |
| Manufacturer | GW Instek |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PPH-1503 is a dual-range DC power supply designed for laboratory and educational use. With selectable output ranges of 15V/3A or 9V/5A at 45 watts total power, it combines constant voltage and constant current operation modes. The 3.5-inch TFT LCD display provides clear readout of voltage, current, and power parameters.
Key Features
- Dual-range single output: 0-15V/0-3A or 0-9V/0-5A
- 45W total power output
- 3.5-inch TFT LCD display
- Constant voltage and constant current operation
- Built-in DVM measurement function
- High measurement resolution: 1mV/0.1mA (5A range) or 1mV/0.1μA (5mA range)
- External relay control output for on/off switching
- Sink current capability up to 2A
- Digital panel control
- Selectable output and input ports from front or rear panel
- Key lock function for setting protection
- Five preset memory sets with power output on/off states
Applications
- Laboratory testing and experimentation
- Electronics education and training
- Component characterization and verification
- Power supply for prototype circuits
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 15 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 3 A |
| Power Range Selector | 1-199 |
| Power Rating | 150 W |
| Mounting Type | Bench Top |
| Input Voltage | 90-264 VAC |
| Series | PPH-15xxD Series |
| Display | 3.5 TFT LCD |
| Interface | USB,LAN,Analog |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | DVM Measurement Function |
